1/2 Stopvalve concealed part CONCEALED_ZA003340

Model

ZA003340

1/2" Stopvalve concealed part,opening counterclockwise

Available Finishings
Finishing 04 Without finishing
04
Without finishing
Technical Sheet

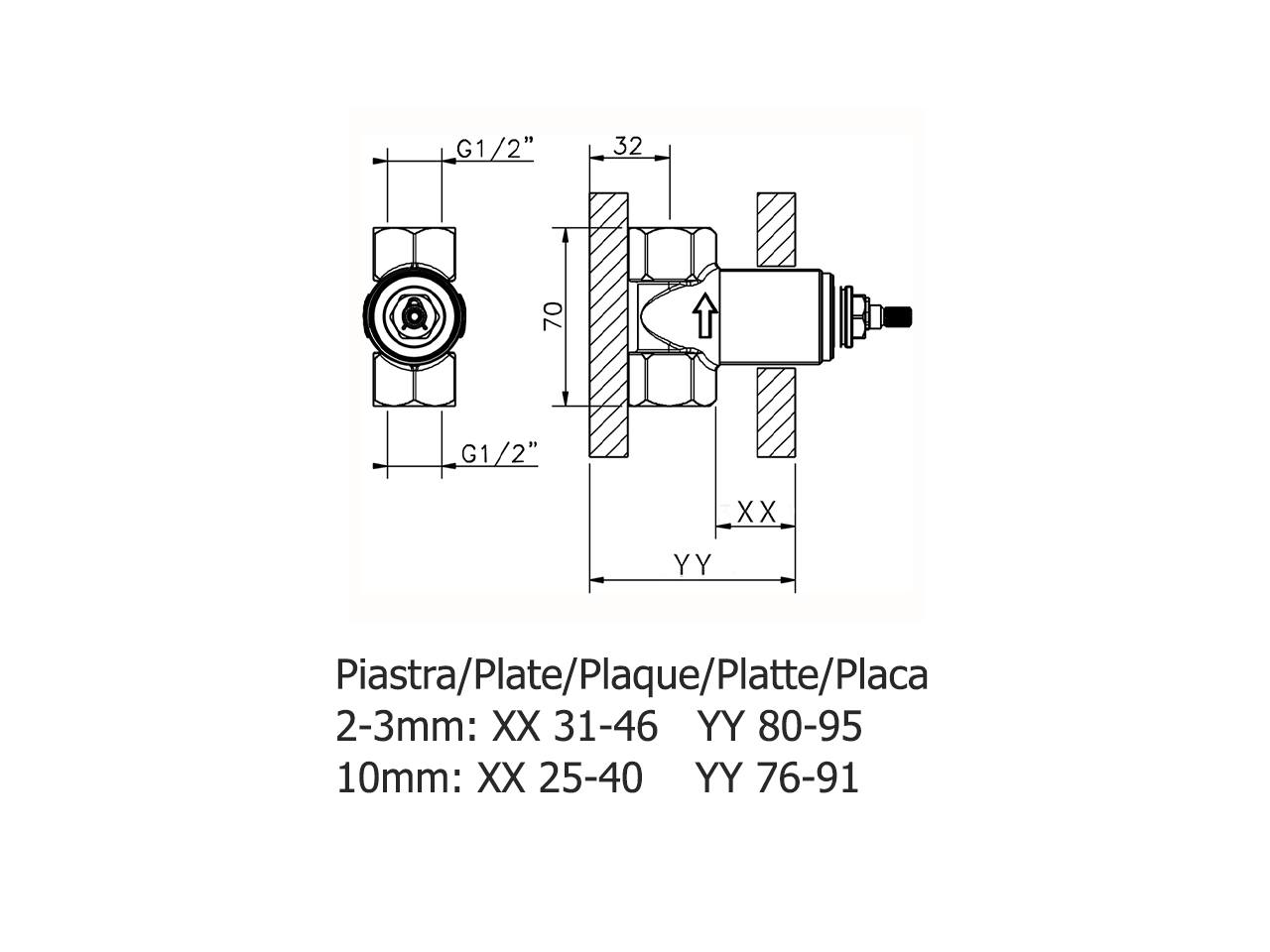

1/2 Stopvalve concealed part CONCEALED_ZA003340 - v1
Technologies
Characteristics

Concealed: 1

Technical Specifications
ZA003340
1/2 Stopvalve concealed part CONCEALED_ZA003340 - v1
Files 2D
PDF PNG
Waterflow
ZA003340
Pressure Water Mix(l/min)
1 Bar 28
2 Bar 39
3 Bar 47
4 Bar
5 Bar
External Parts
External parts usable with current element

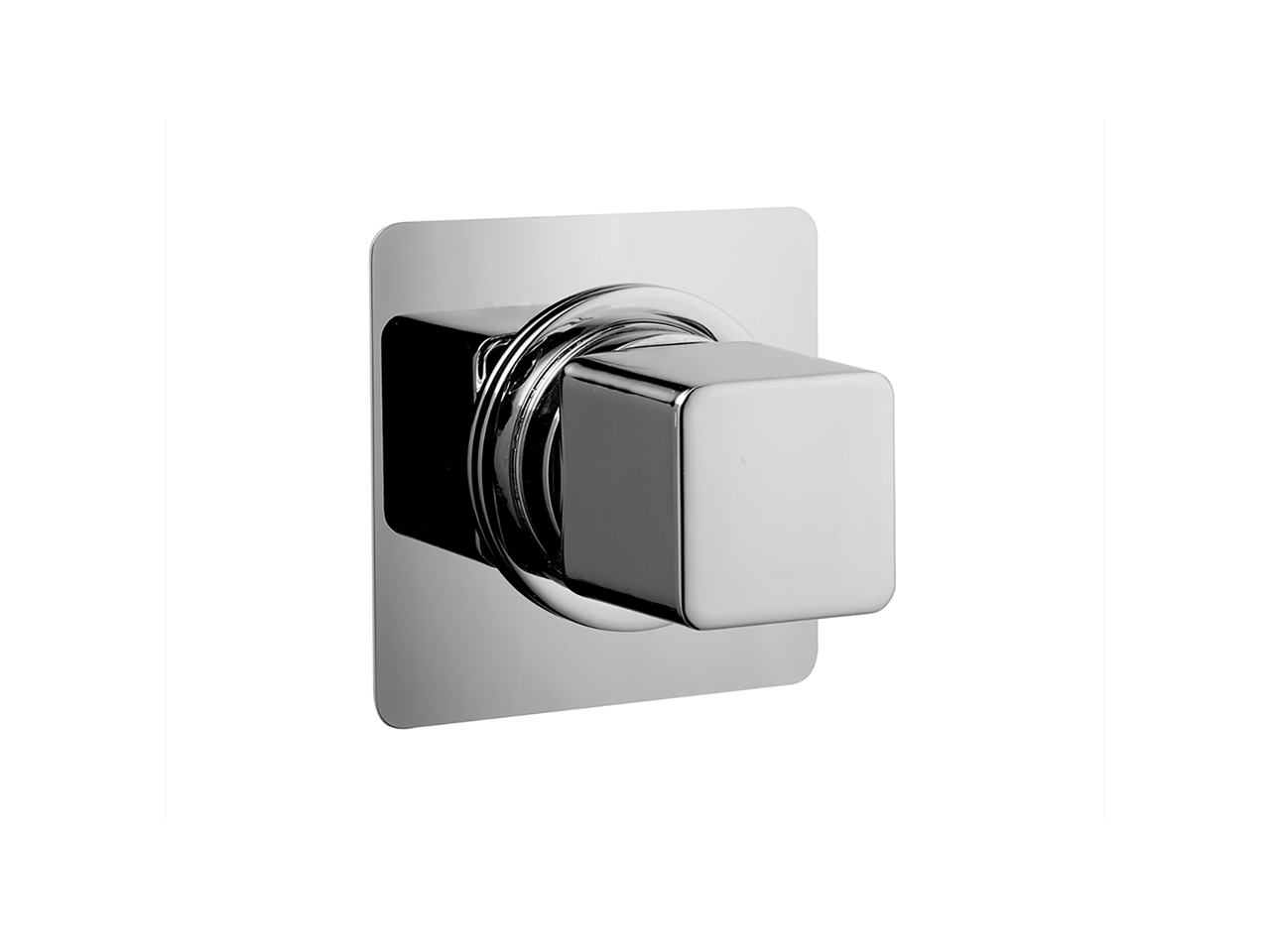

CisalStopvalve exposed part CUBIC_CU003310

Stopvalve exposed part CUBIC_CU003310

Cubic CU003310

CisalStopvalve exposed part GRACE_GL003310

Stopvalve exposed part GRACE_GL003310

Grace GL003310

CisalStopvalve exposed part GRACE_GS003310

Stopvalve exposed part GRACE_GS003310

Grace GS003310

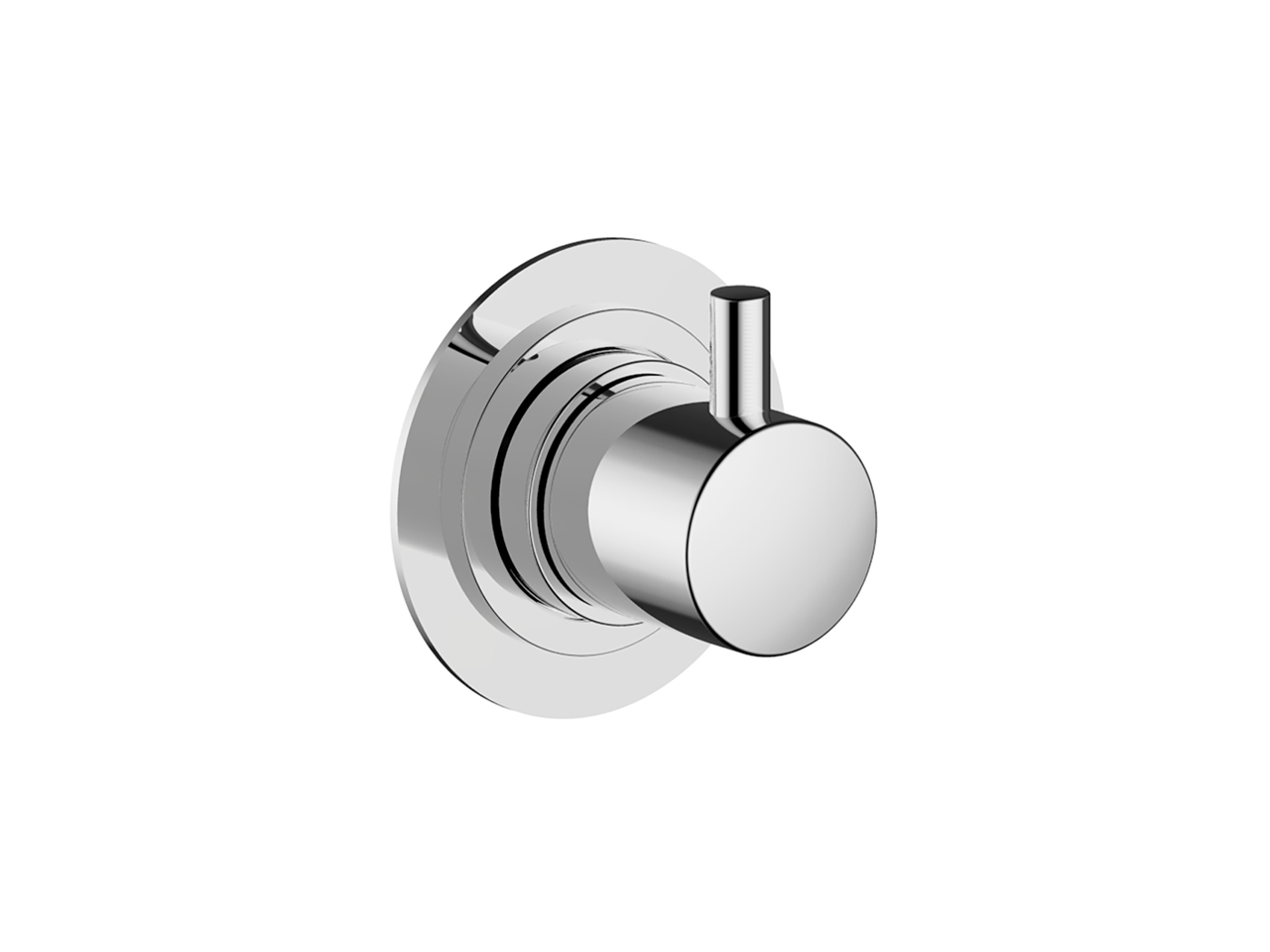

CisalStopvalve exposed part NUOVA LESS_LN003310

Stopvalve exposed part NUOVA LESS_LN003310

Nuova less LN003310

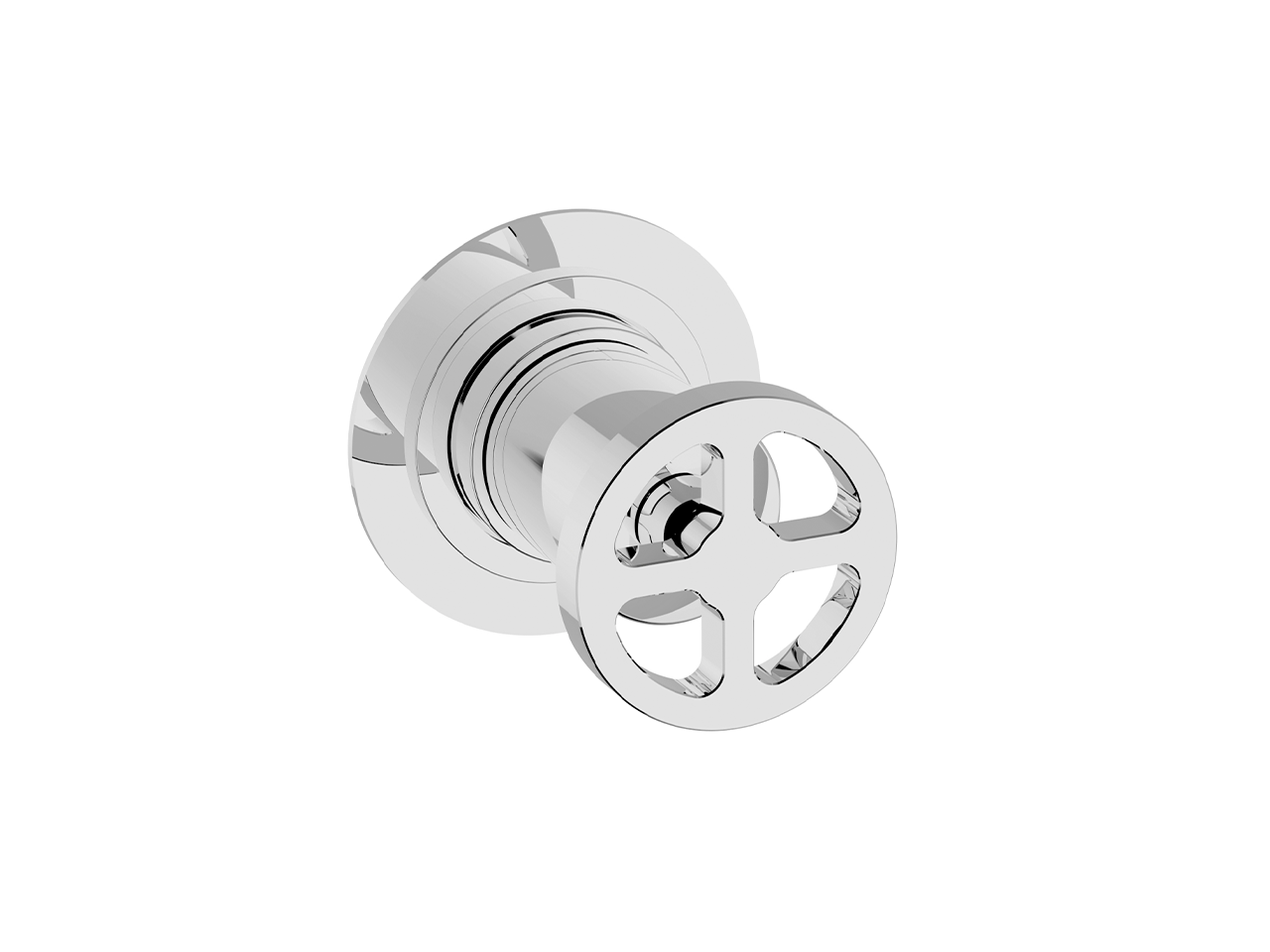

CisalStopvalve exposed part GRACE_MN003310

Stopvalve exposed part GRACE_MN003310

Grace MN003310

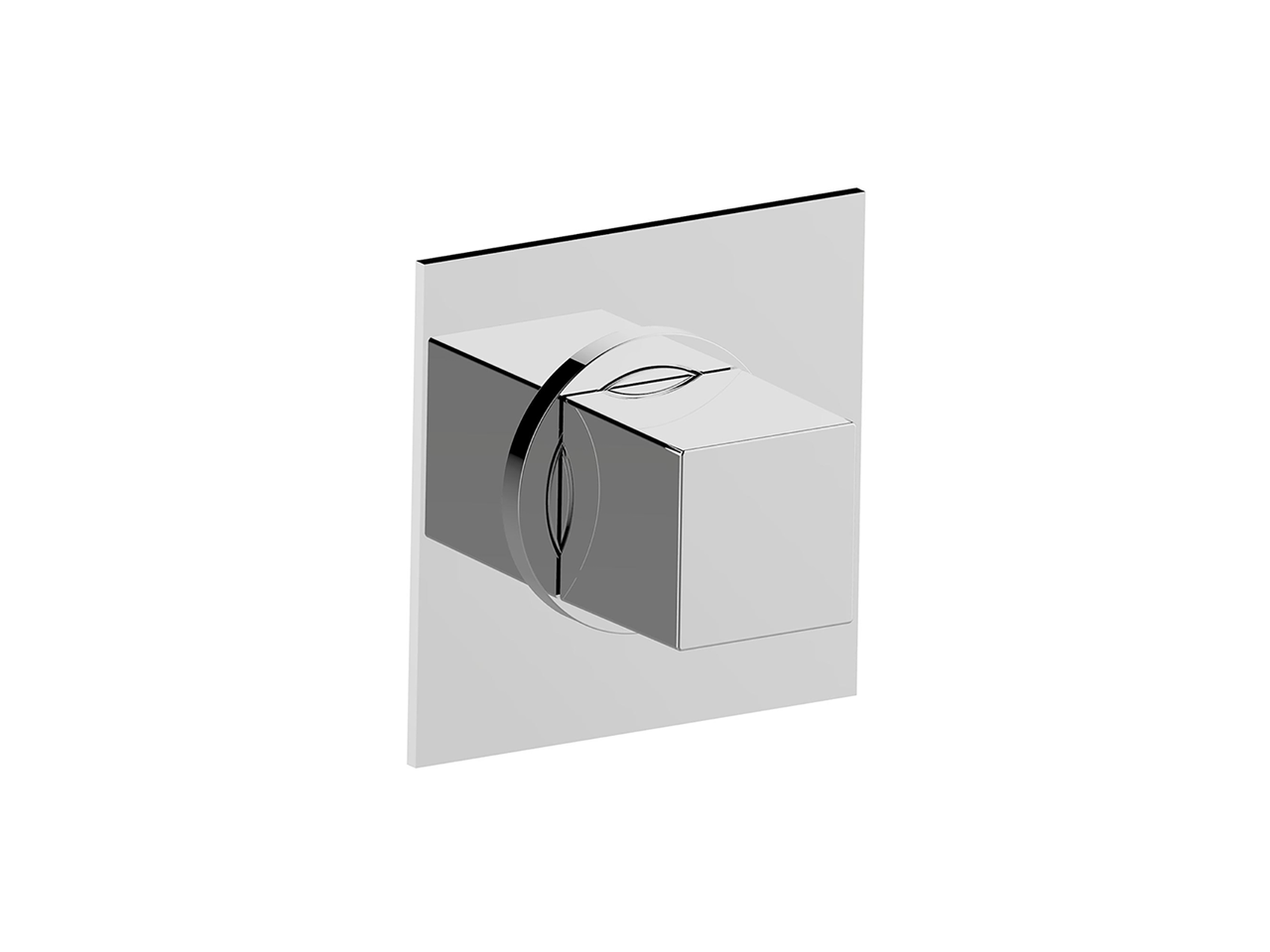

CisalStopvalve exposed part ROADSTER ACCENT_RA003310

Stopvalve exposed part ROADSTER ACCENT_RA003310

Roadster accent RA003310

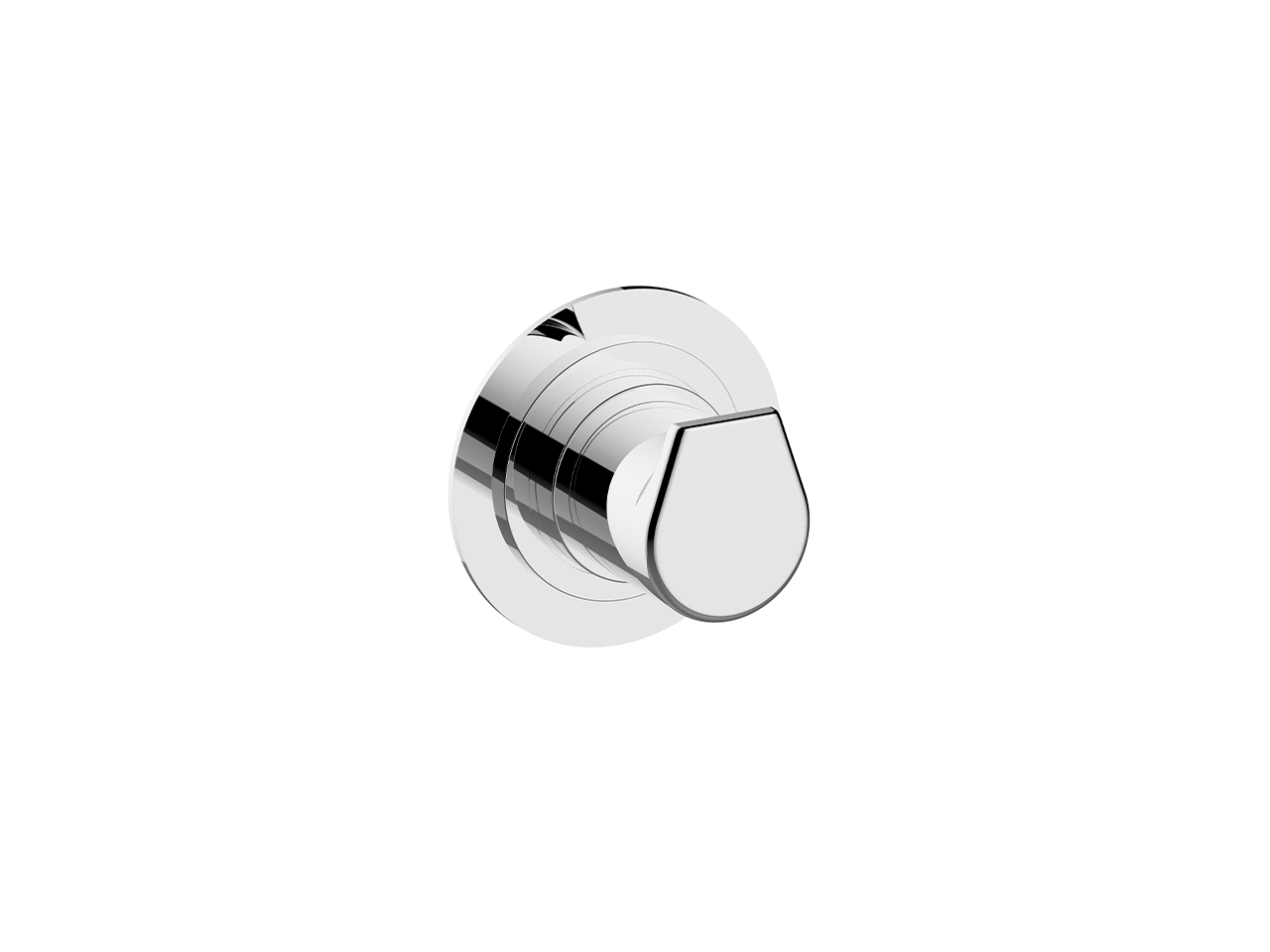

CisalStopvalve exposed part ROCK&ROLL_RK003310

Stopvalve exposed part ROCK&ROLL_RK003310

Rock&Roll RK003310

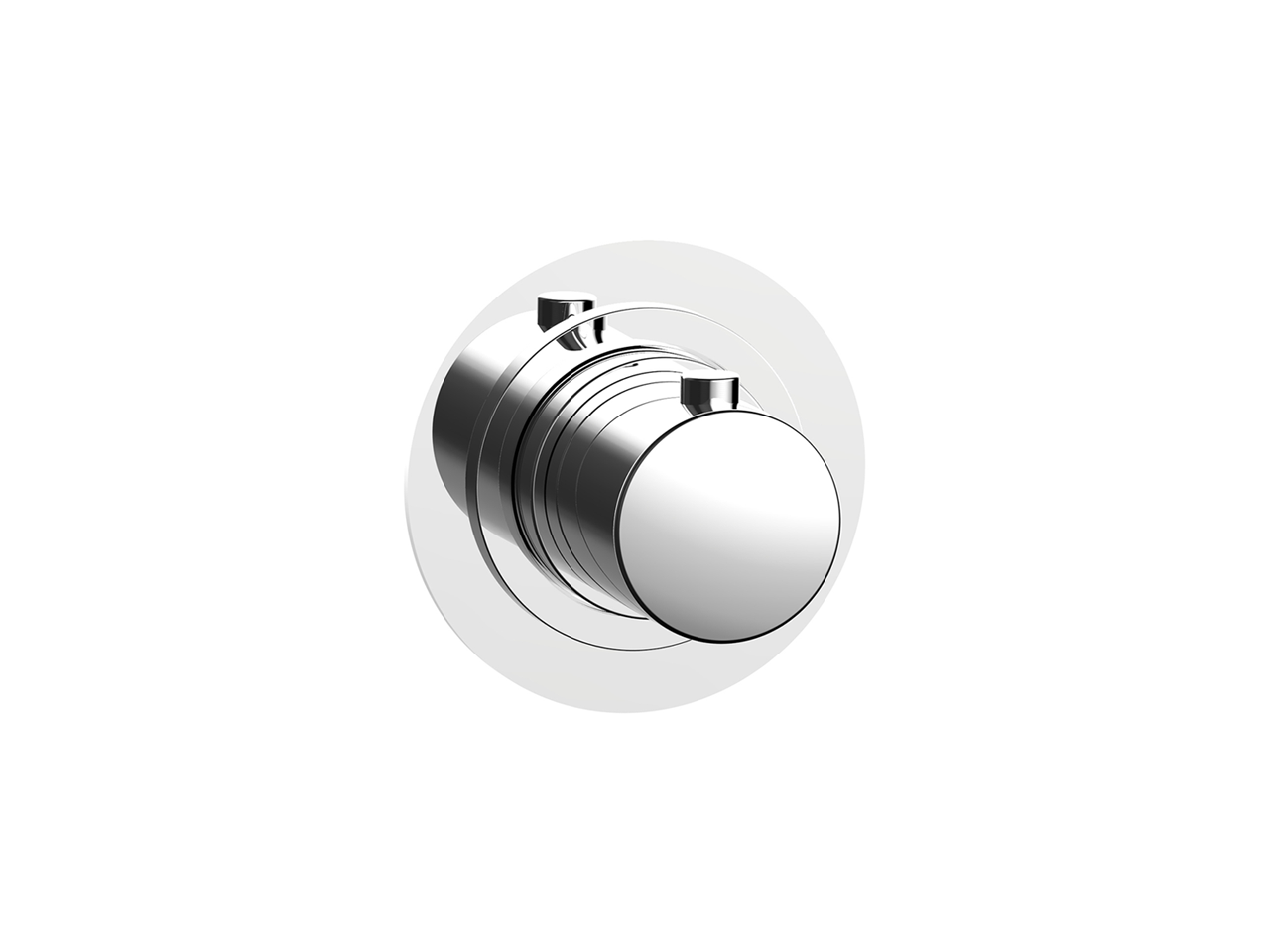

CisalStopvalve exposed part SLIM_SM003310

Stopvalve exposed part SLIM_SM003310

Slim SM003310

CisalStopvalve exposed part WAVE_WA003310

Stopvalve exposed part WAVE_WA003310

Wave WA003310

CisalStopvalve exposed part WAVE_WE003310

Stopvalve exposed part WAVE_WE003310

Wave WE003310
