2 Function Concealed Thermostatic Valve CONCEALED_ZA00R200
Model
ZA00R200
2 Function Concealed Thermostatic Valve
Available Finishings
Technologies
Thermostatic
The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristics
Concealed: 1
Cartridge Spare Parts: 23.51A.HF
Cartridge Name: HF Thermostatic Valve
Waterflow
ZA00R200
| Pressure | Water Mix 1(l/min) | Water Mix 2(l/min) |
|---|---|---|
| 1 Bar | 20.6 | 20.6 |
| 2 Bar | 29.8 | 29.8 |
| 3 Bar | 36.5 | 36.5 |
| 4 Bar | 42 | 42 |
| 5 Bar | 46.9 | 46.9 |

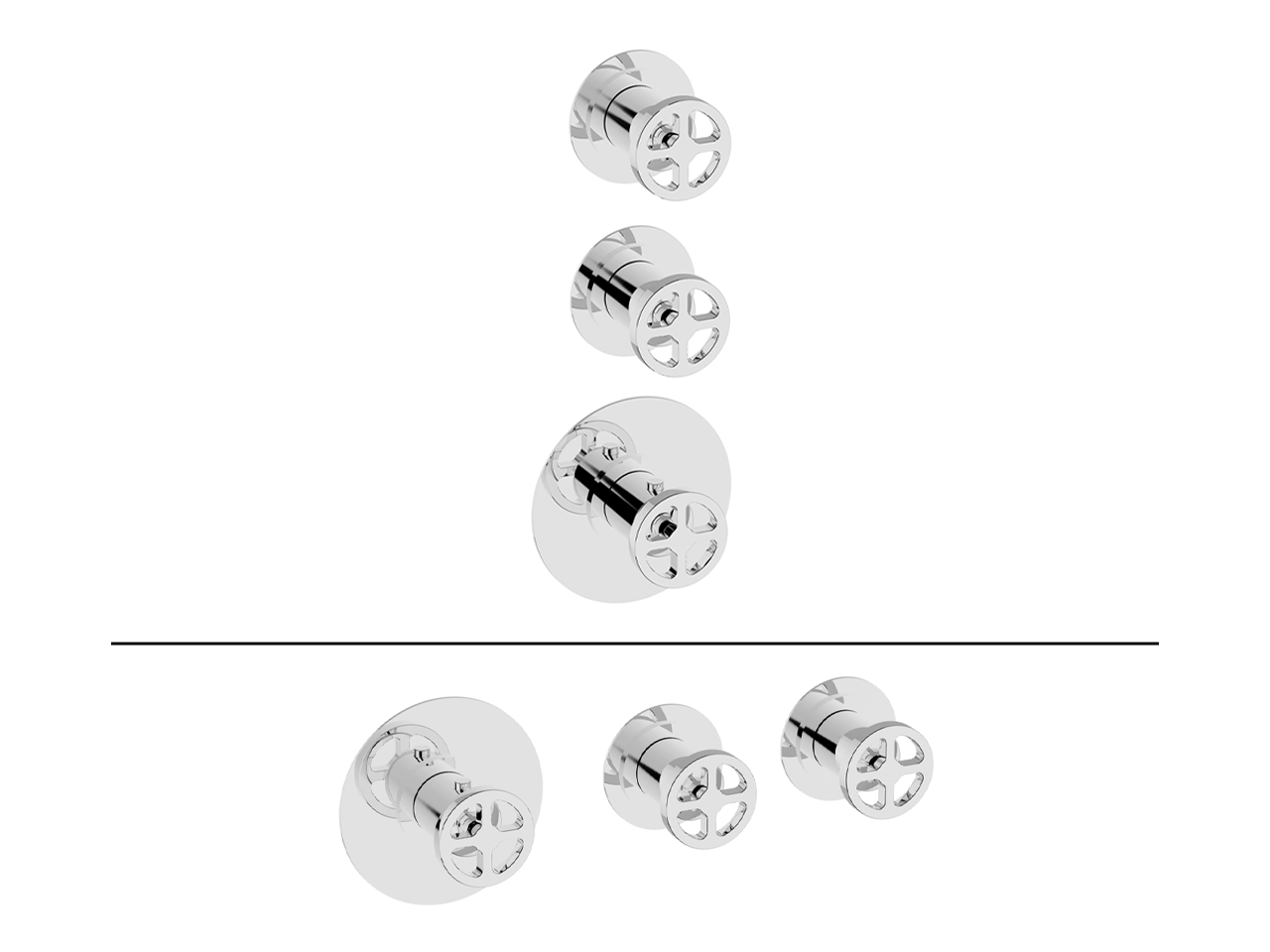

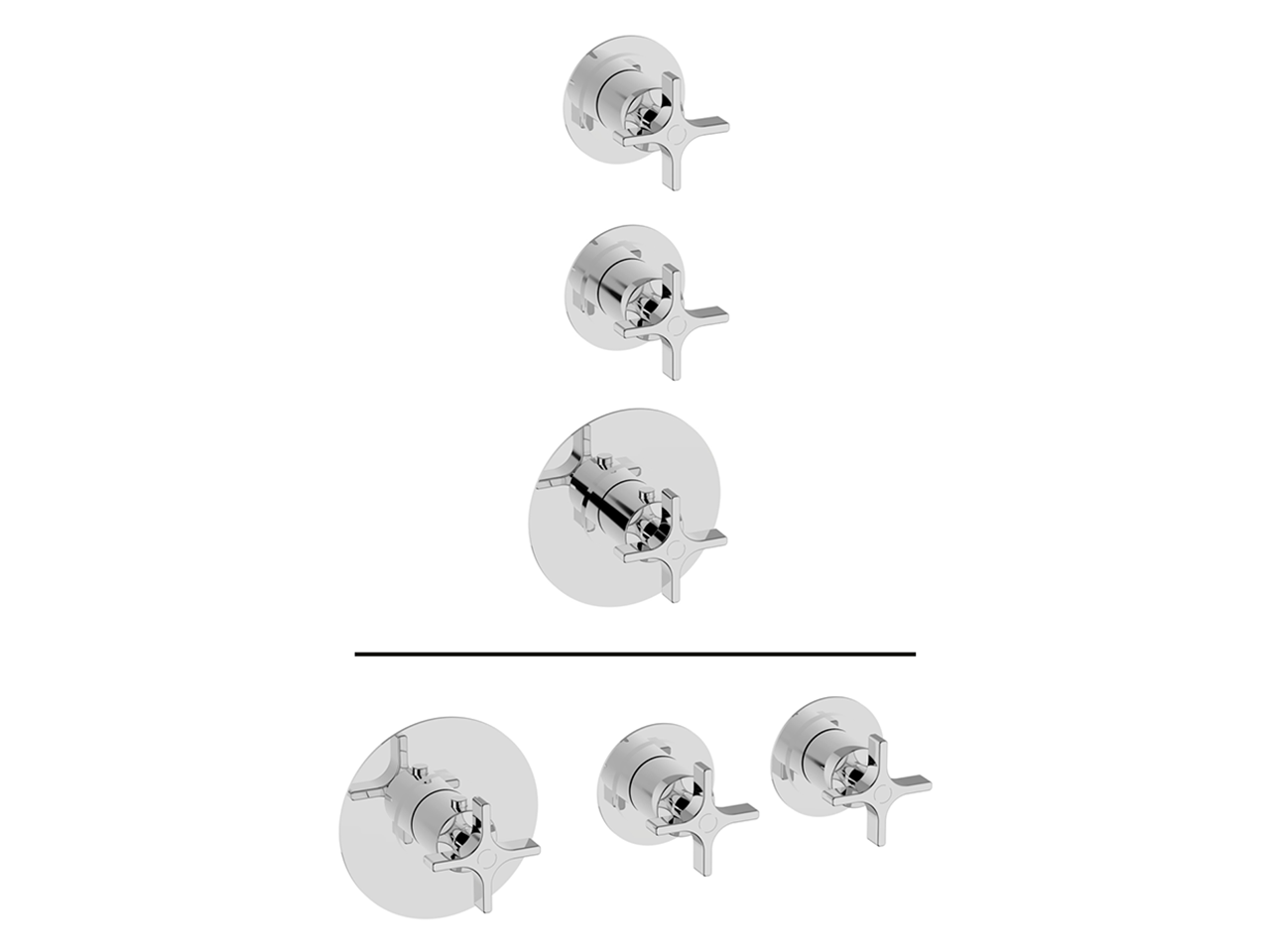

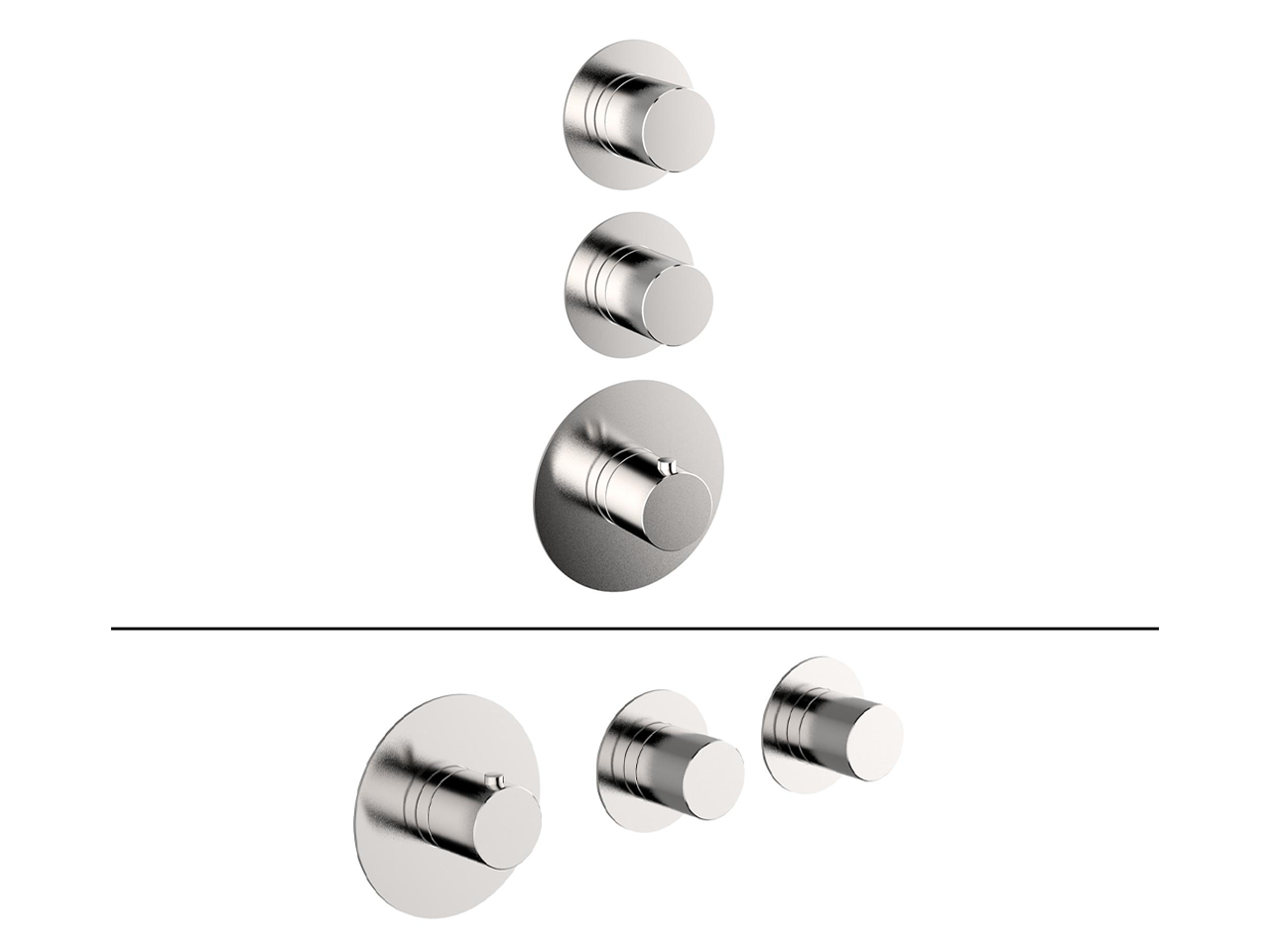

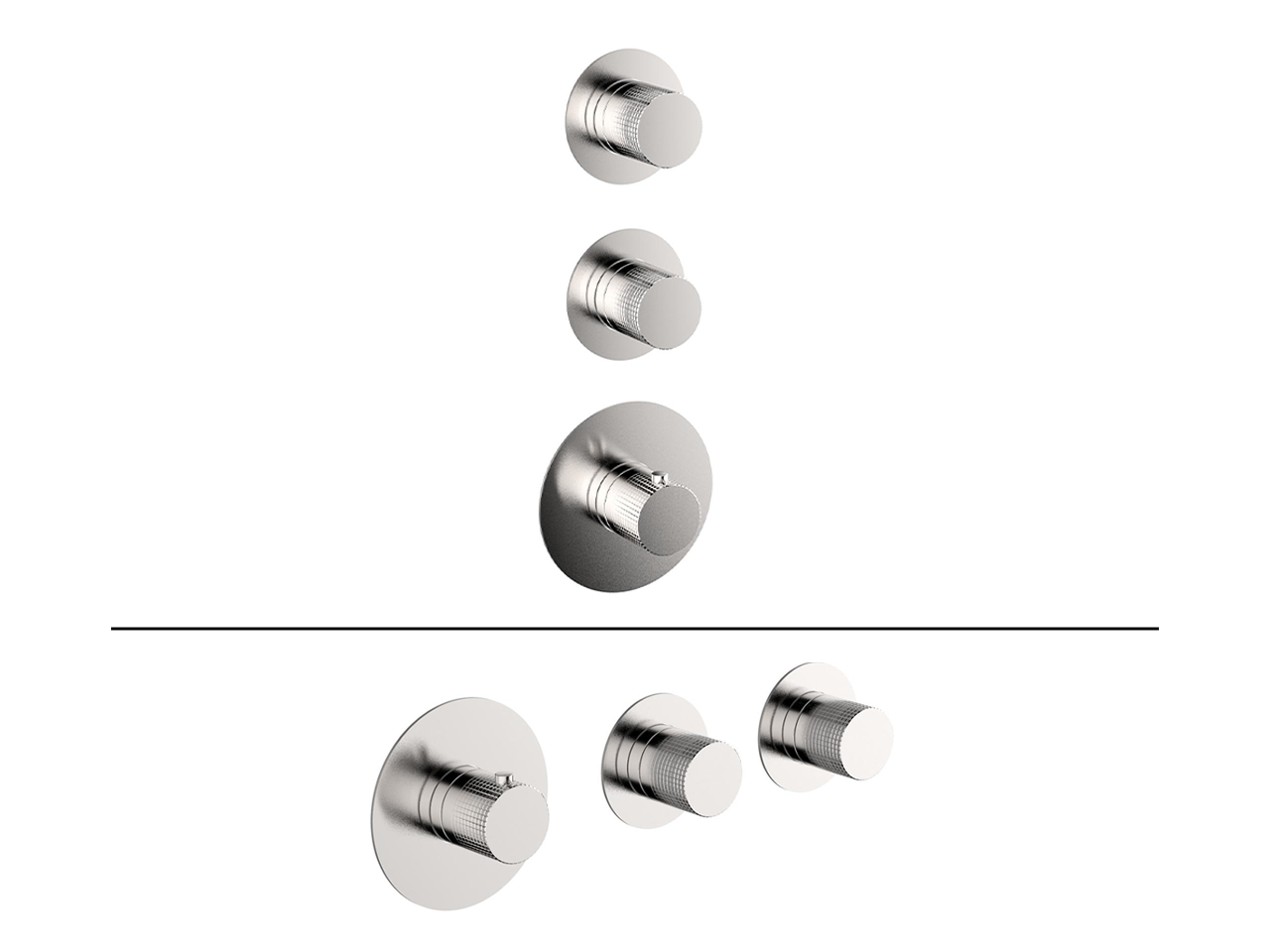

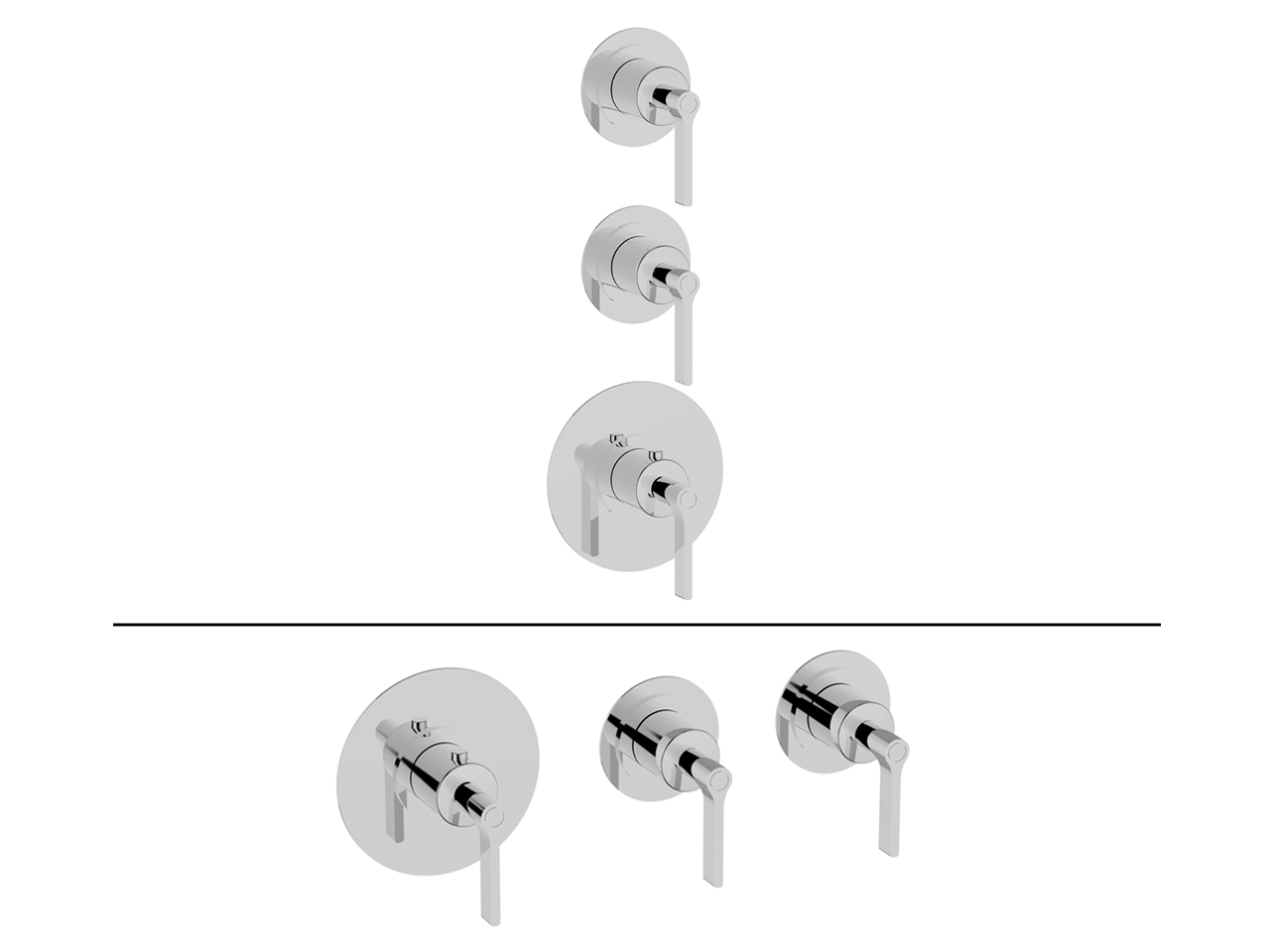

External Parts
External parts usable with current element
