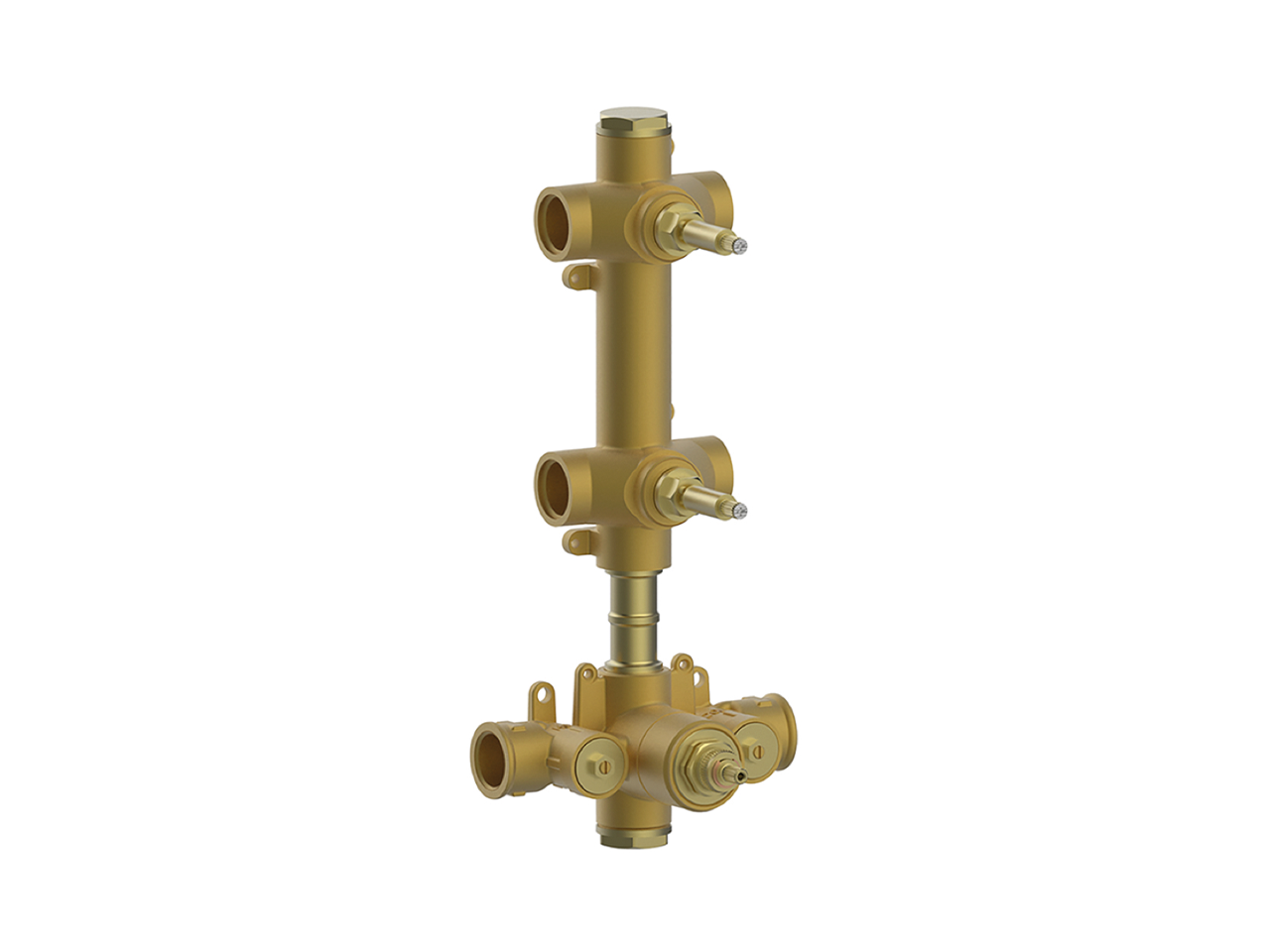

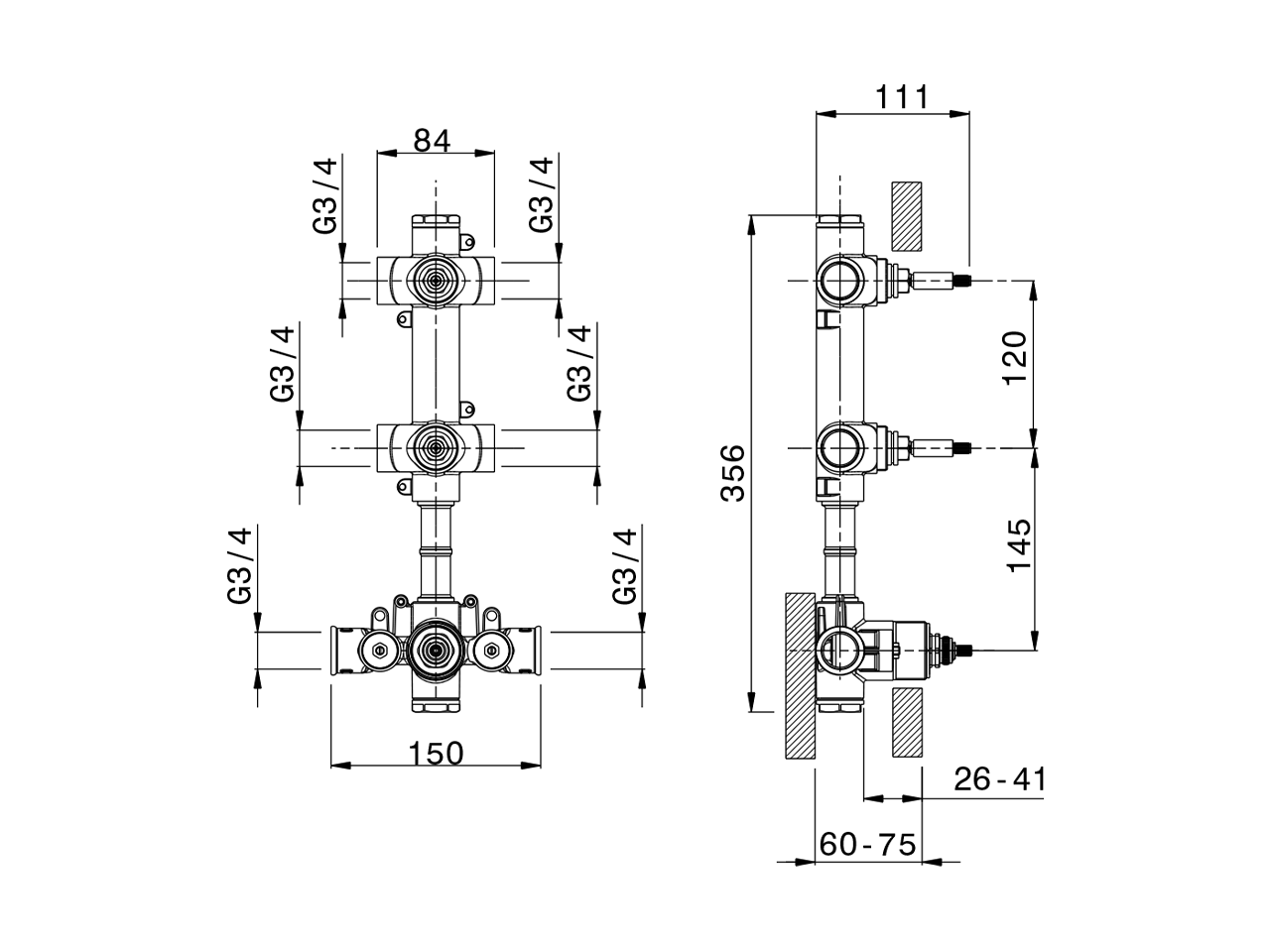

2 Function Concealed Thermostatic Valve CONCEALED_ZA00V200
Model
ZA00V200
2 Function Concealed Thermostatic Valve
Available Finishings
Technologies
Thermostatic
The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristics
Concealed: 1
Cartridge Spare Parts: 23.51A.HF
Cartridge Name: HF Thermostatic Valve
Waterflow
ZA00V200
| Pressure | Water Mix 1(l/min) | Water Mix 2(l/min) |
|---|---|---|
| 1 Bar | 19.6 | 19.6 |
| 2 Bar | 28.1 | 28.1 |
| 3 Bar | 34.2 | 34.2 |
| 4 Bar | 39.2 | 39.2 |
| 5 Bar | 43.5 | 43.5 |
External Parts
External parts usable with current element
