Slim

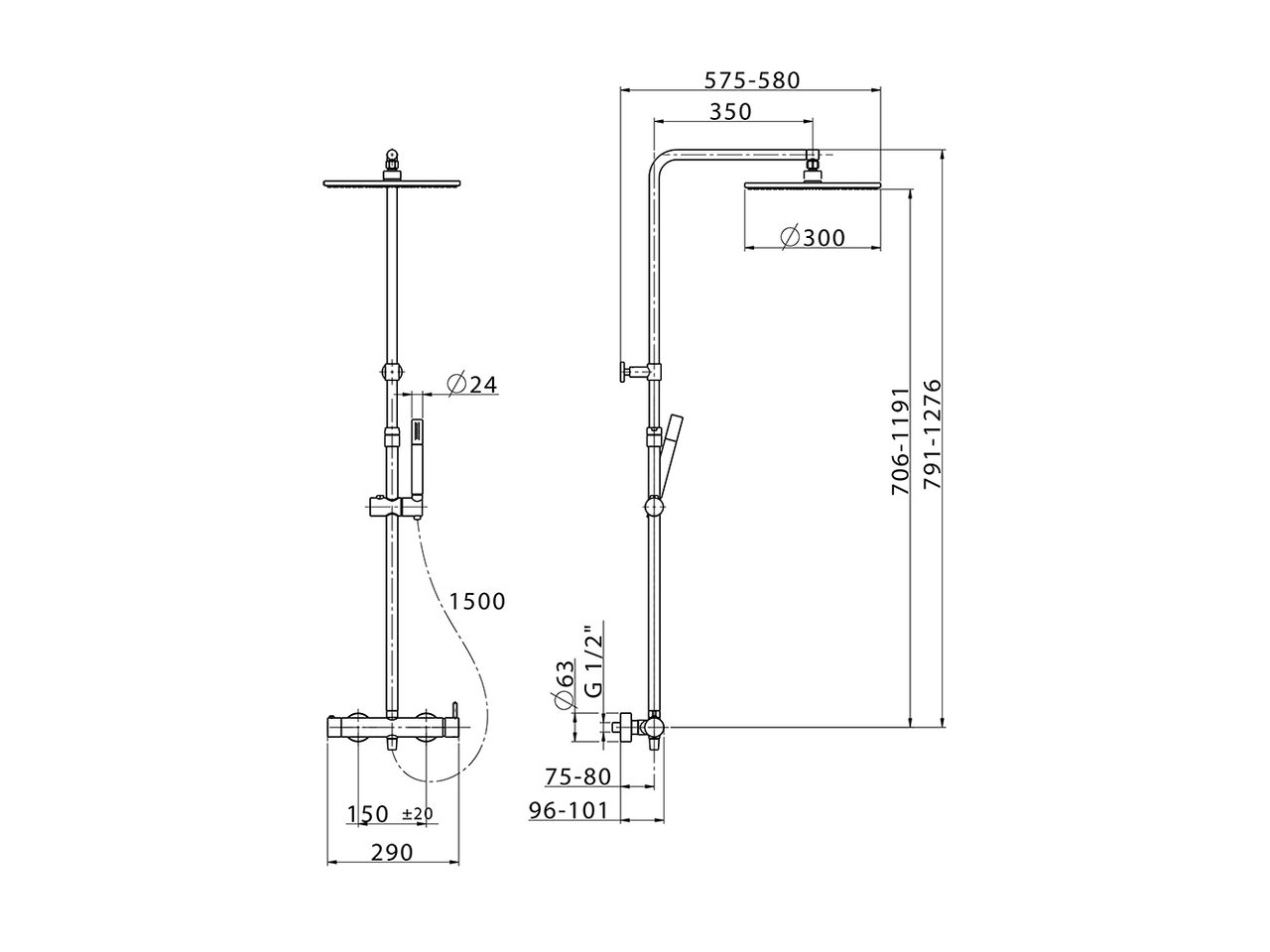

2-function single lever shower set SLIM_SM004030
Model
SM004030
2-function single lever shower set,2 outlet deviastop,adjustable riser column,sliding shower bracket,Brass minimalistic one spray handshower,300 mm round showerhead 8 mm thick BRASS,150 cm smooth SUPREME Flexible Hose
Available Finishings
Technologies
EcoStop
EcoStop feature limits water flow to approximately 50% of maximum output with one point of resistance on setting. Push slightly past the middle stop only when full water output is required. This will save water up to 50%.
DeviaStop
The Cisal Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).
Characteristics
Cartridge Spare Parts: ZZ95409000
Cartridge Name: 35 mm Cartridge
Waterflow
SM004030
| Pressure | Shower(l/min) | Rain(l/min) |
|---|---|---|
| 1 Bar | 4.5 | 6.48 |
| 2 Bar | 6.4 | 8.66 |
| 3 Bar | 7.8 | 8.65 |
| 4 Bar | 8.1 | 8.74 |
| 5 Bar | 8.4 | 8.95 |
