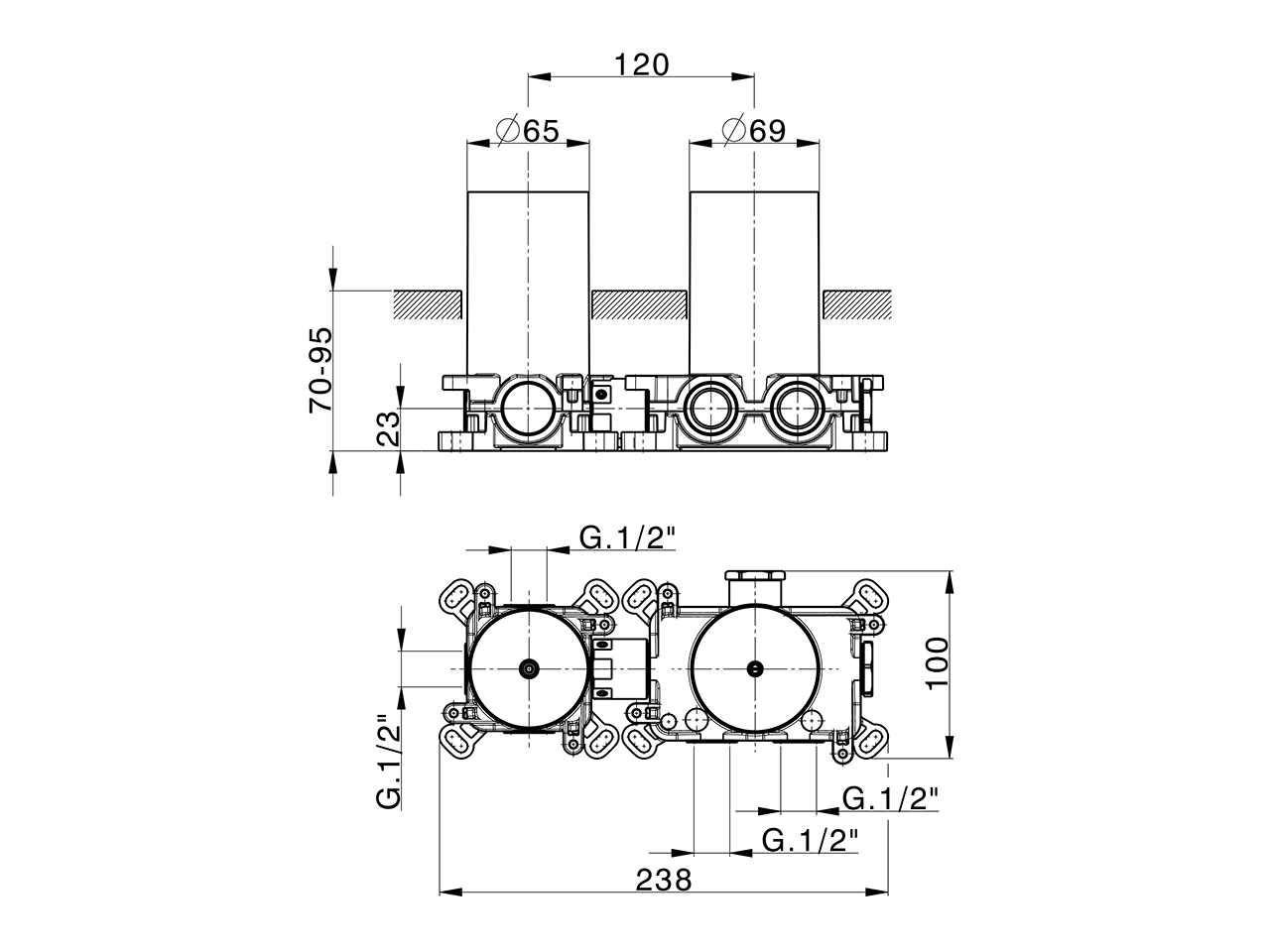

2-outlet Concealed thermostatic mixer CONCEALED_ZA0G22L0
Model
ZA0G22L0
2-outlet Concealed thermostatic mixer,Easy-Box - Horizontal installation,with 2-outlet diverter,without trim kit,with protection guard box
Available Finishings
Technologies
DeviaStop
The Cisal Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).
Thermostatic
The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristics
Installation: Concealed
Cartridge Spare Parts: 22.04A.AR - ZZ97279004
Cartridge Name: Argo 2 (long filter) Thermostatic Valve
Waterflow
ZA0G22L0
| Pressure | Water Mix 1(l/min) | Water Mix 2(l/min) |
|---|---|---|
| 1 Bar | 8.1 | 9.3 |
| 2 Bar | 11.5 | 13.3 |
| 3 Bar | 14.2 | 16.3 |
| 4 Bar | 16.1 | 18.9 |
| 5 Bar | 17.8 | 21.3 |

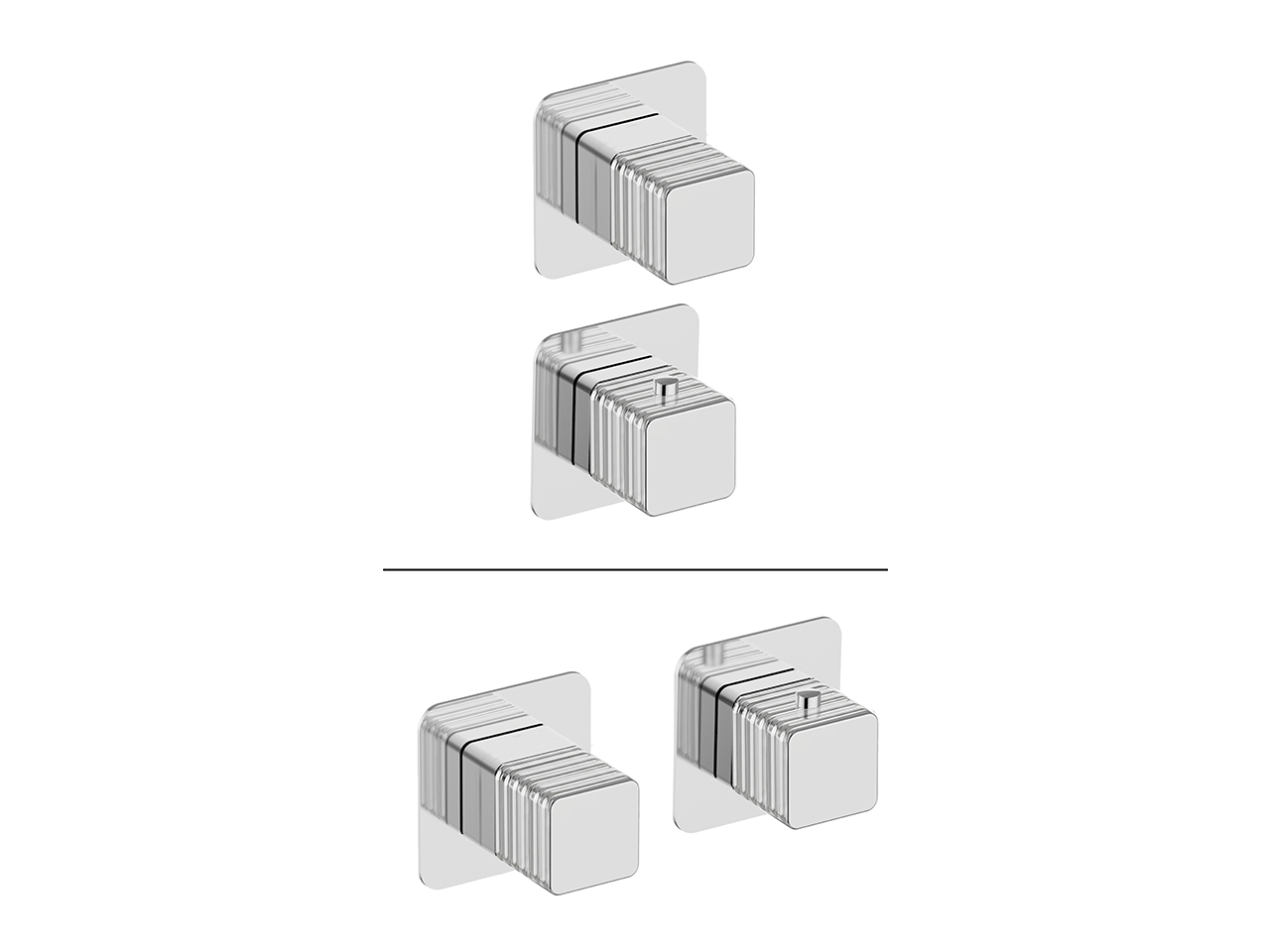

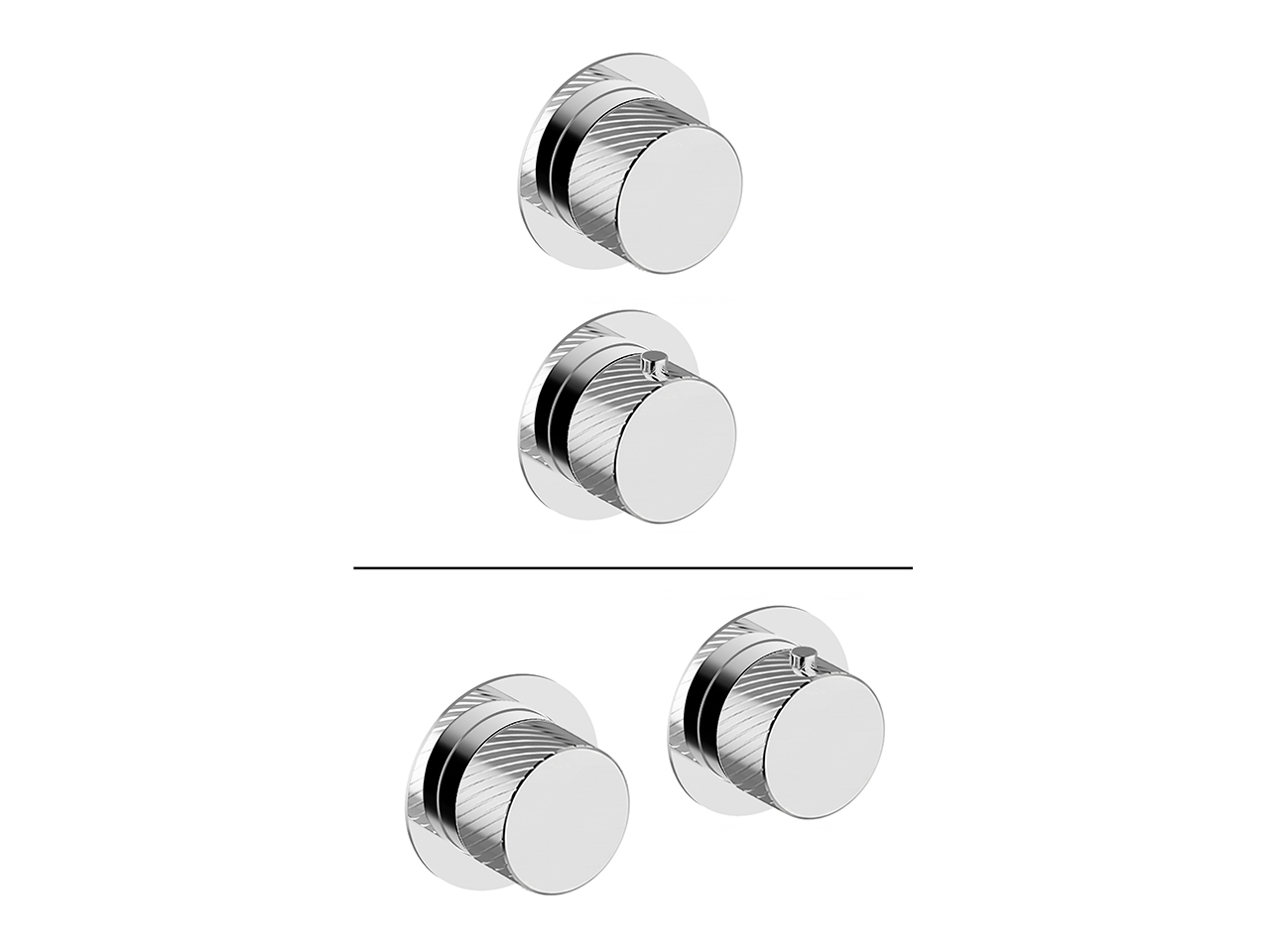

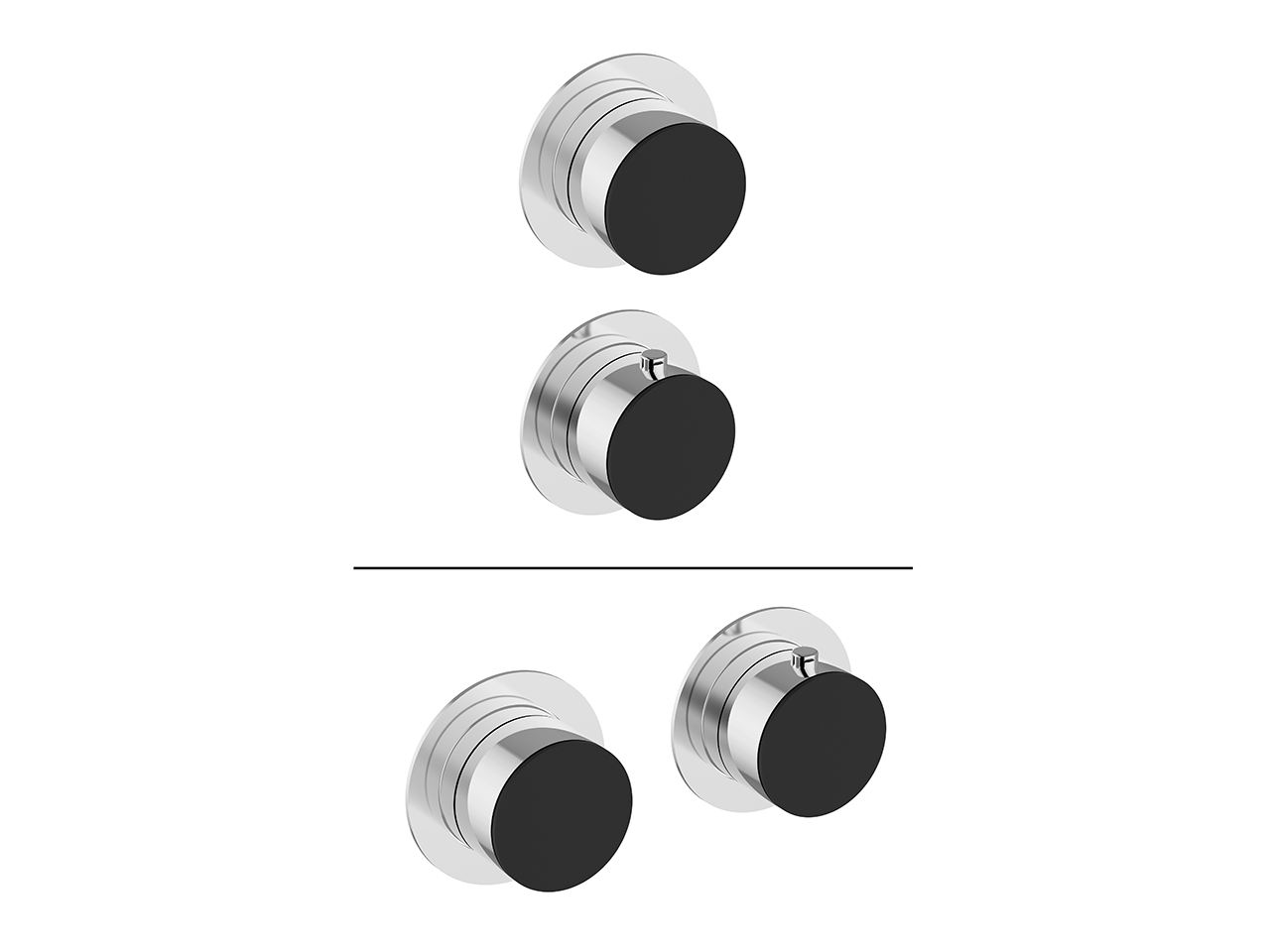

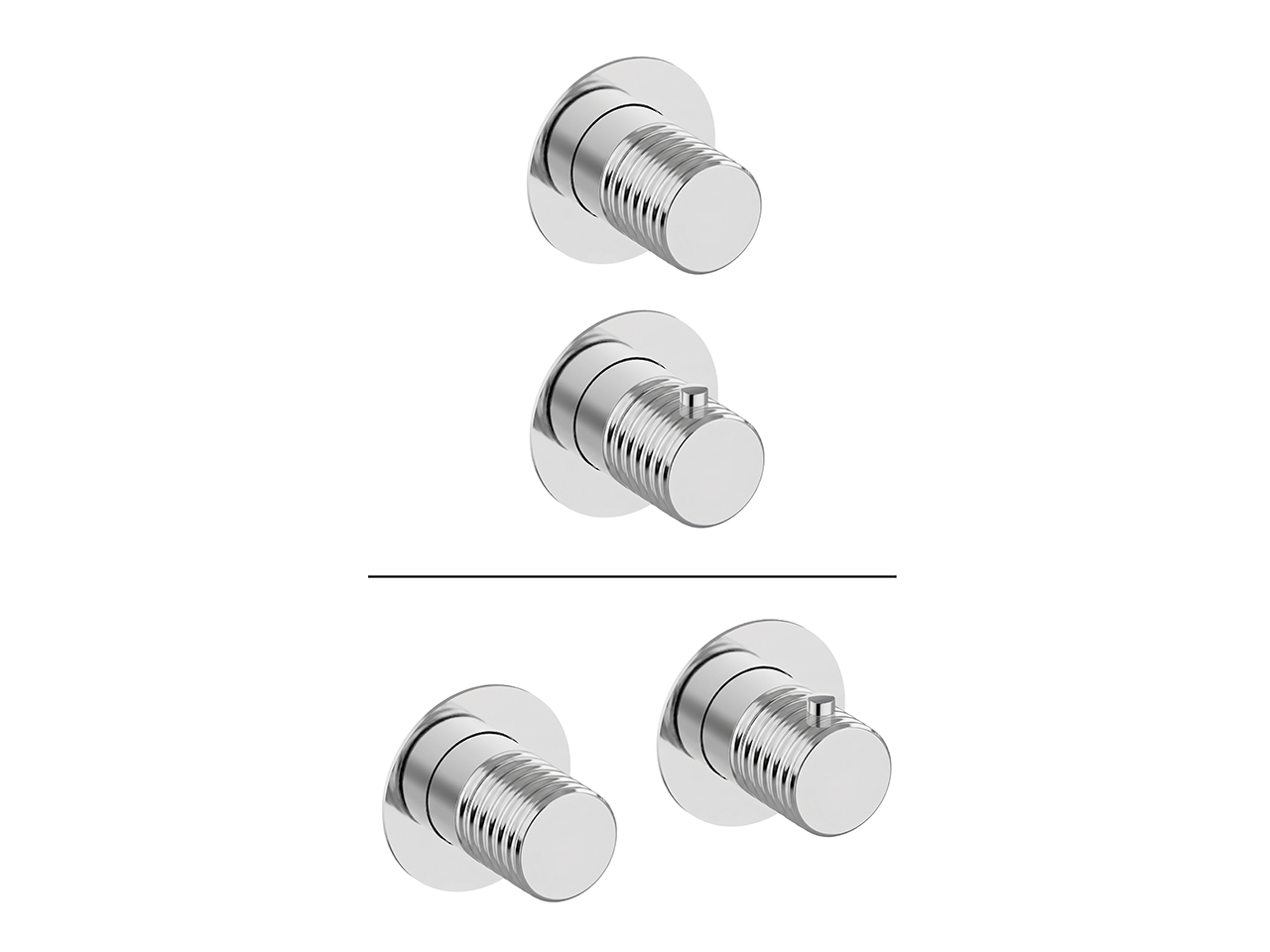

External Parts
External parts usable with current element
