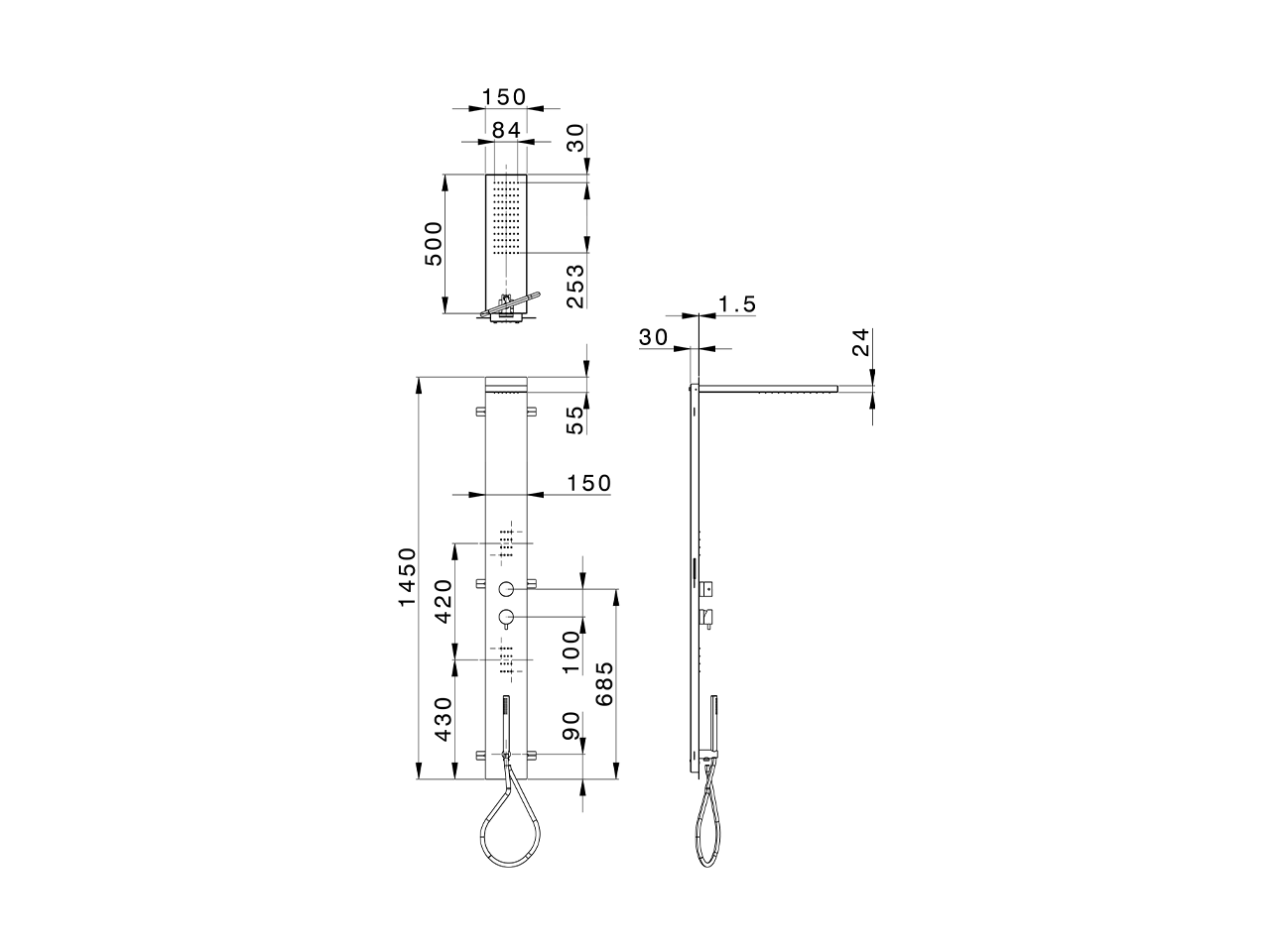

3-fonctions single lever shower panel SHOWER COLUMNS_ZS005040
Model
ZS005040
3-fonctions single lever shower panel,stainless steel AISI 304 shower panel,3 outlet deviastop cartridge,handshower holder with wall elbow,23 mm Brass One Spray handshower,2 front body jets,150x500 thick 24mm Inox rectangular showerhead,rain function,150 cm PVC Flexible Hose
Available Finishings
Technologies
Characteristics
Single Lever: 1
Cartridge Spare Parts: ZZ99751000
Cartridge Name: 35 mm Cartridge
Waterflow
ZS005040
| Pressure | Rain(l/min) | Spray(l/min) |
|---|---|---|
| 1 Bar | 5.7 | 5.6 |
| 2 Bar | 11 | 10 |
| 3 Bar | 14.2 | 13.2 |
| 4 Bar | 17.3 | 16 |
| 5 Bar | 19.2 | 18.1 |
