Xion

Concealed single lever bath mixer XION_XI001101

Model

XI001101

Concealed single lever bath mixer,double separate control,minimalistic one spray handshower,deck mounted spout,Inox AISI 316L

Available Finishings
Finishing D1 Brushed Inox
D1
Brushed Inox
Technical Sheet

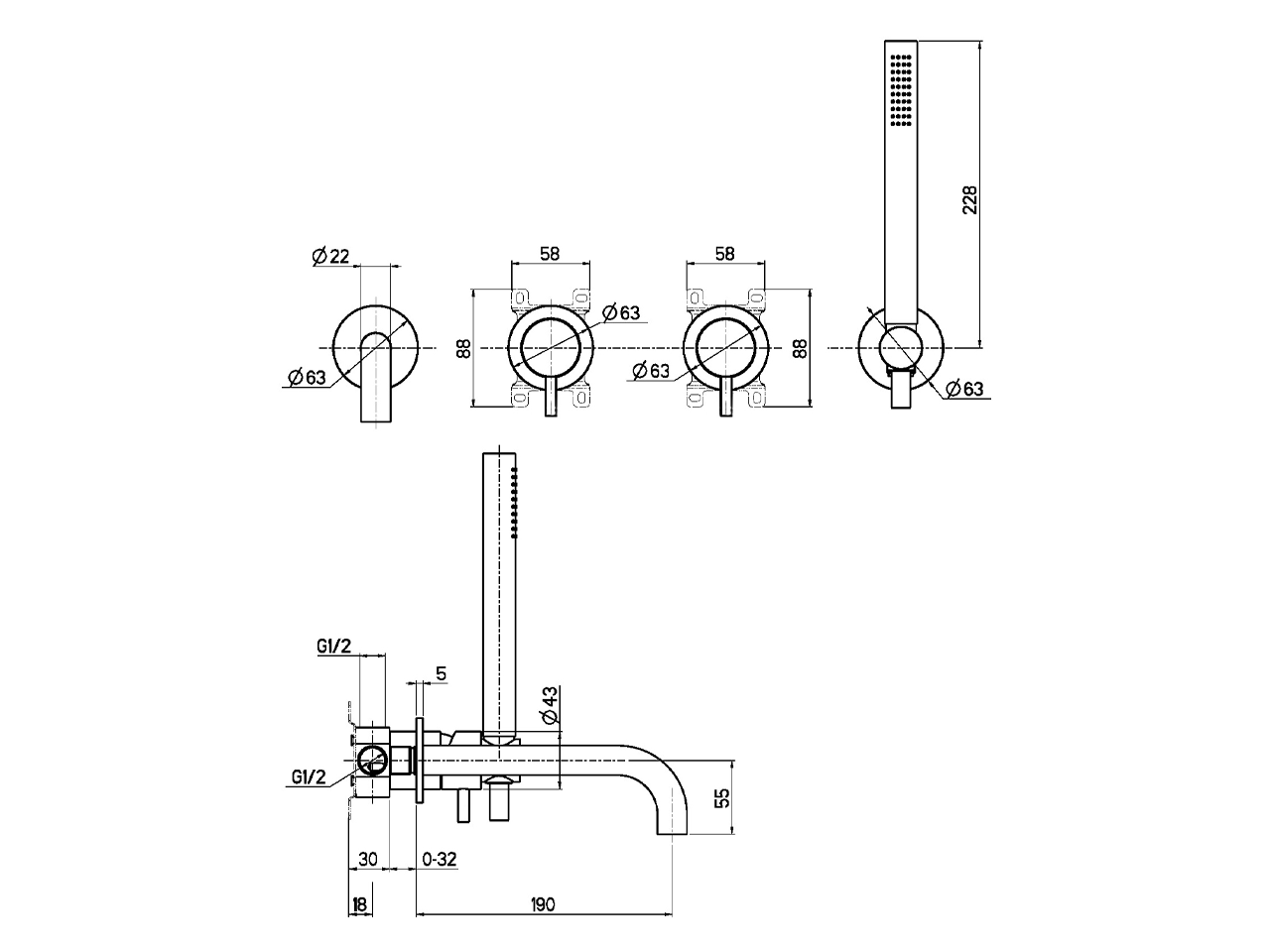

Concealed single lever bath mixer XION_XI001101 - v1
Technologies
Characteristics

Cartridge Spare Parts: ZZ96779000

Cartridge Name: 35 mm Cartridge

Technical Specifications
XI001101
Concealed single lever bath mixer XION_XI001101 - v1
Files 2D
PDF PNG
Files 3D
STP
Spareparts
PDF
Instructions
PDF
Waterflow
XI001101
Pressure Shower(l/min) Bath(l/min)
1 Bar 10.2 11.4
2 Bar 14.5 16.5
3 Bar 18 20.2
4 Bar 20.8 23.6
5 Bar 23.4 26.3
Design

Cisal Atelier

A creative centre for research and experimentation, planning increasingly stylish products that can truly steal the show.
