Concealed thermostatic shower mixer, 2-outlets CONCEALED_ZA019101

Model

ZA019101

Concealed thermostatic shower mixer, 2-outlets,with 1/2" 2 outlet deviastop cartridge,without trim kit

Available Finishings
Finishing 04 Without finishing
04
Without finishing
Technical Sheet
Concealed thermostatic shower mixer, 2-outlets CONCEALED_ZA019101 - v1
Technologies
DeviaStop

DeviaStop

The Cisal Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).

Thermostatic

Thermostatic

The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.

Characteristics

Concealed: 1

Cartridge Spare Parts: 24.04A.PP

Cartridge Name: 8x20 Plus P Thermostatic Valve

Technical Specifications
ZA019101
Concealed thermostatic shower mixer, 2-outlets CONCEALED_ZA019101 - v1

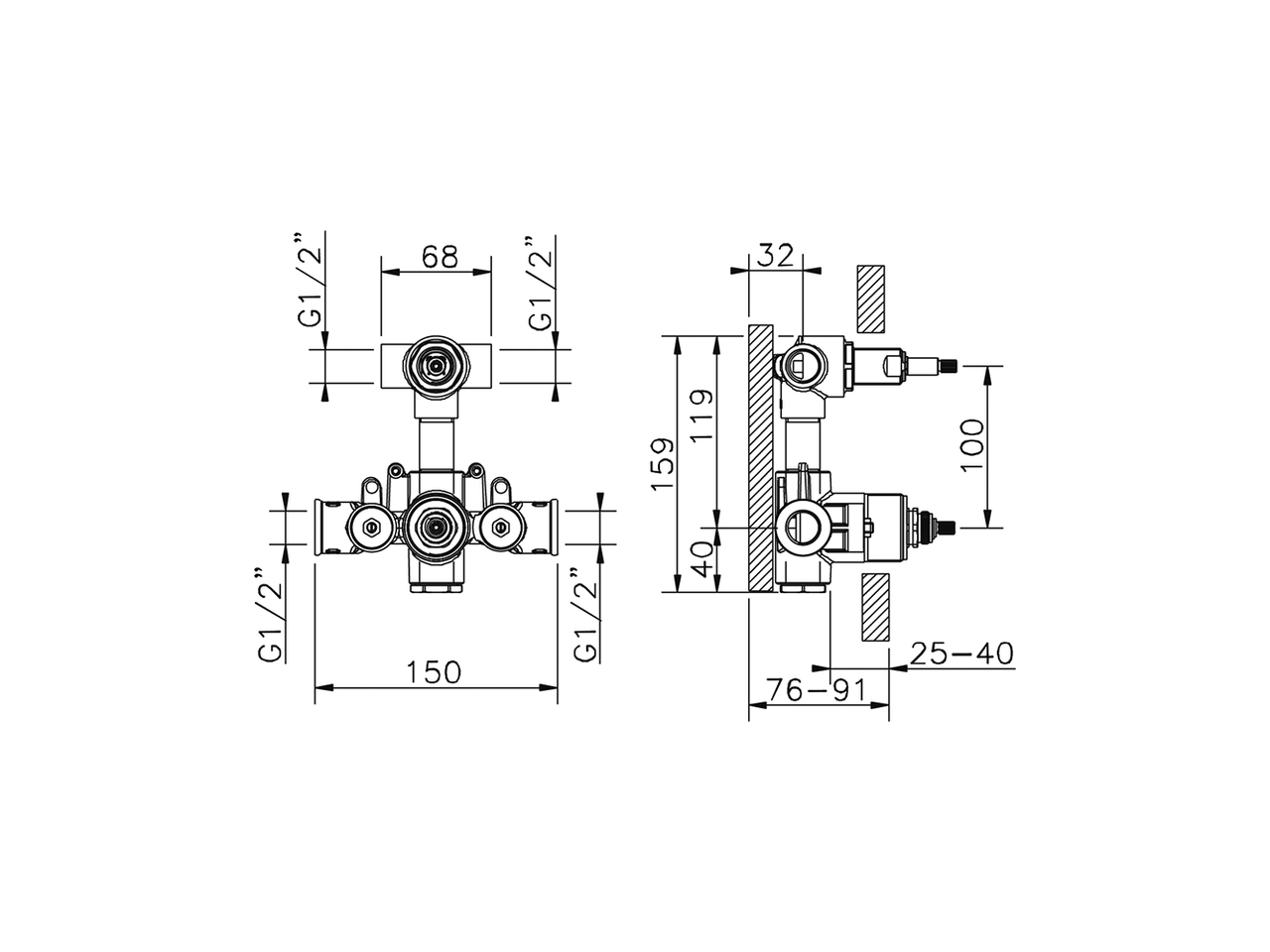

Files 2D
PDF PNG
Instructions
PDF
Instructions
PDF
Instructions
PDF
Waterflow
ZA019101
Pressure Shower(l/min) Bath(l/min)
1 Bar 13 14
2 Bar 18 20
3 Bar 22 24
4 Bar 26 28
5 Bar 28 31
External Parts
External parts usable with current element
CisalExposed part for con.thermo.shower mixer,2-outlets HI-RISE_RI019100

Exposed part for con.thermo.shower mixer,2-outlets HI-RISE_RI019100

Hi-Rise RI019100

CisalExposed part for con.thermo.shower mixer, 2-outlet WAVE_WE019100

Exposed part for con.thermo.shower mixer, 2-outlet WAVE_WE019100

Wave WE019100
