Lineaviva

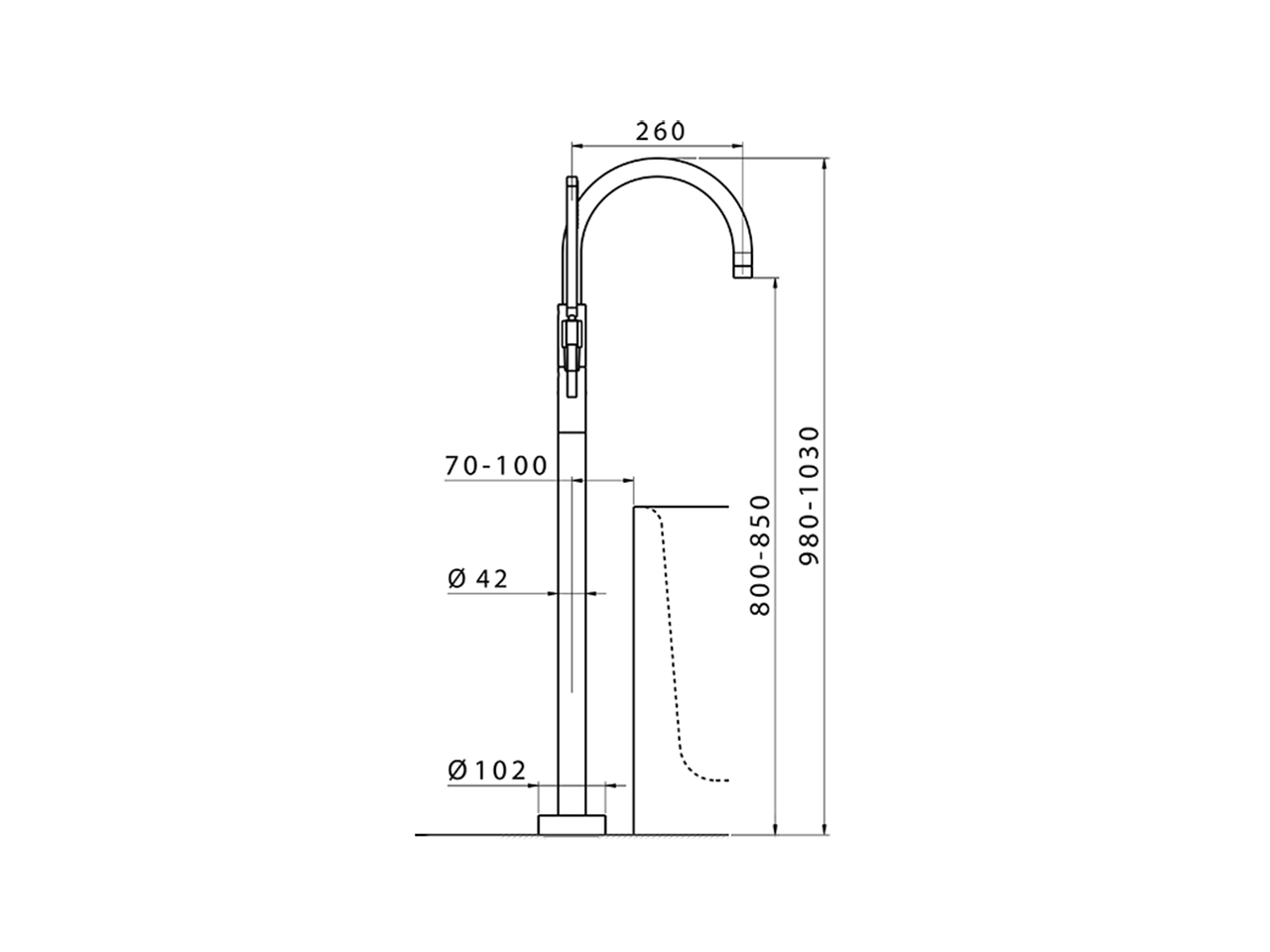

Exposed part for single-lever bath shower mixer LINEAVIVA_LV014200
Model
LV014200
Exposed part for single-lever bath shower mixer,handshower holder on column,minimalistic one spray handshower ABS,150 cm smooth SUPREME Flexible Hose,for items ZA004510
Available Finishings
Technologies
EcoStop
EcoStop feature limits water flow to approximately 50% of maximum output with one point of resistance on setting. Push slightly past the middle stop only when full water output is required. This will save water up to 50%.
Characteristics
Cartridge Spare Parts: ZZ95409000
Cartridge Name: 35 mm Cartridge
Installation: Concealed
Waterflow
LV014200
| Pressure | Shower(l/min) | Bath(l/min) |
|---|---|---|
| 1 Bar | 5.2 | 8.8 |
| 2 Bar | 7.5 | 12.9 |
| 3 Bar | 8.9 | 16 |
| 4 Bar | 10.1 | 18.6 |
| 5 Bar | 10.9 | 20.7 |
Concealed Parts
Cconcealed partsparts required for installation
