X32

Exposed part for Single Lever One Box Valve NUANCE X32_X10BM010

Model

X10BM010

Exposed part for Single Lever One Box Valve,1 Outlet,Minimum depth of installation: 67 mm,without concealed part - Inox AISI 316L,for items ZA00B030-ZA00B031

Available Finishings
Finishing 5H Dark Brass Brushed
5H
Dark Brass Brushed
Finishing 5L Brushed Black Titanium
5L
Brushed Black Titanium
Finishing 5N Brushed Rose Gold
5N
Brushed Rose Gold
Finishing D1 Brushed Inox
D1
Brushed Inox
Technical Sheet

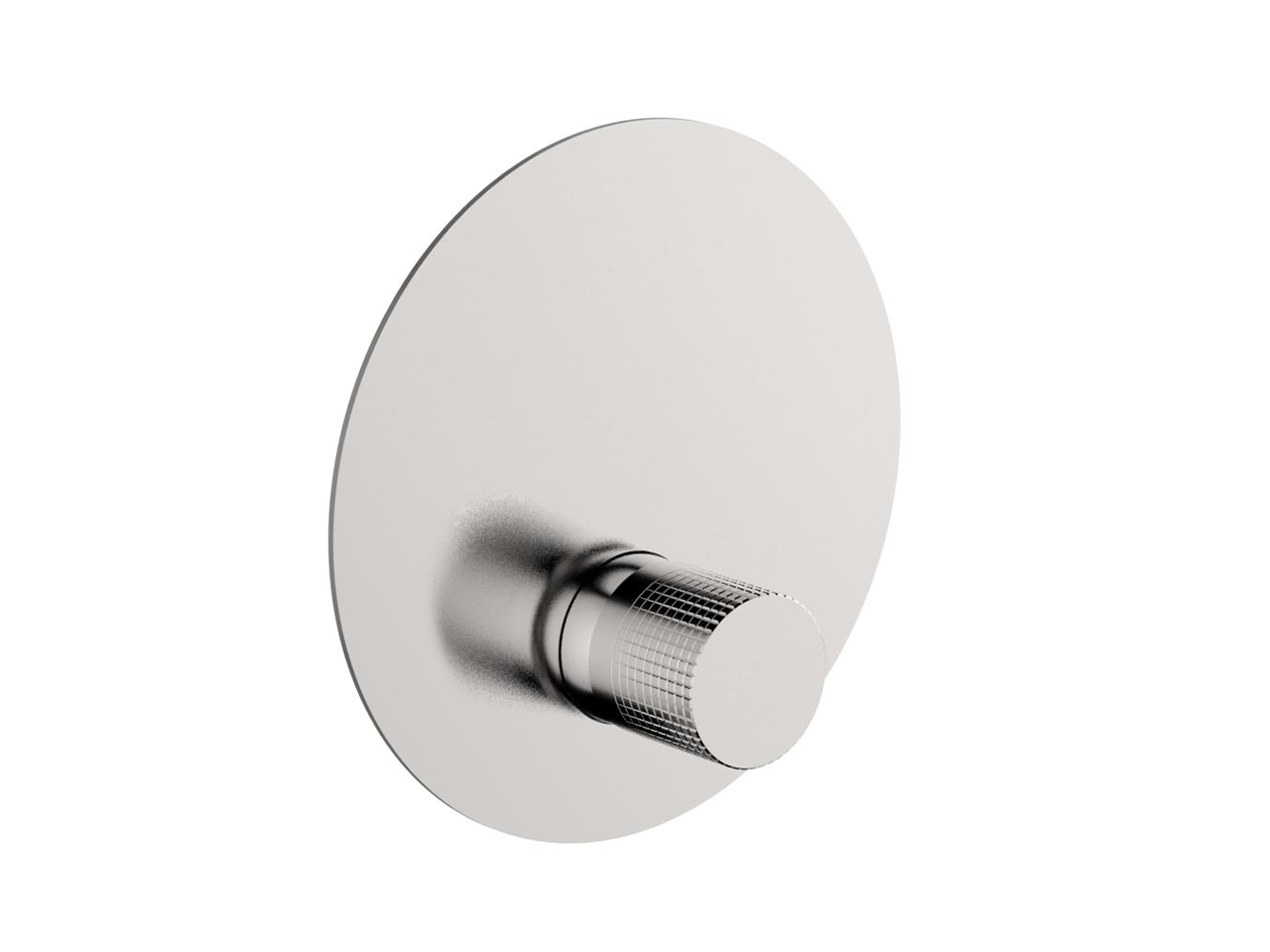

Exposed part for Single Lever One Box Valve NUANCE X32_X10BM010 - v1
Technologies
Characteristics

Cartridge Spare Parts: ZZ97179000

Cartridge Name: 35 mm Cartridge

Installation: Concealed

Technical Specifications
X10BM010
Exposed part for Single Lever One Box Valve NUANCE X32_X10BM010 - v1

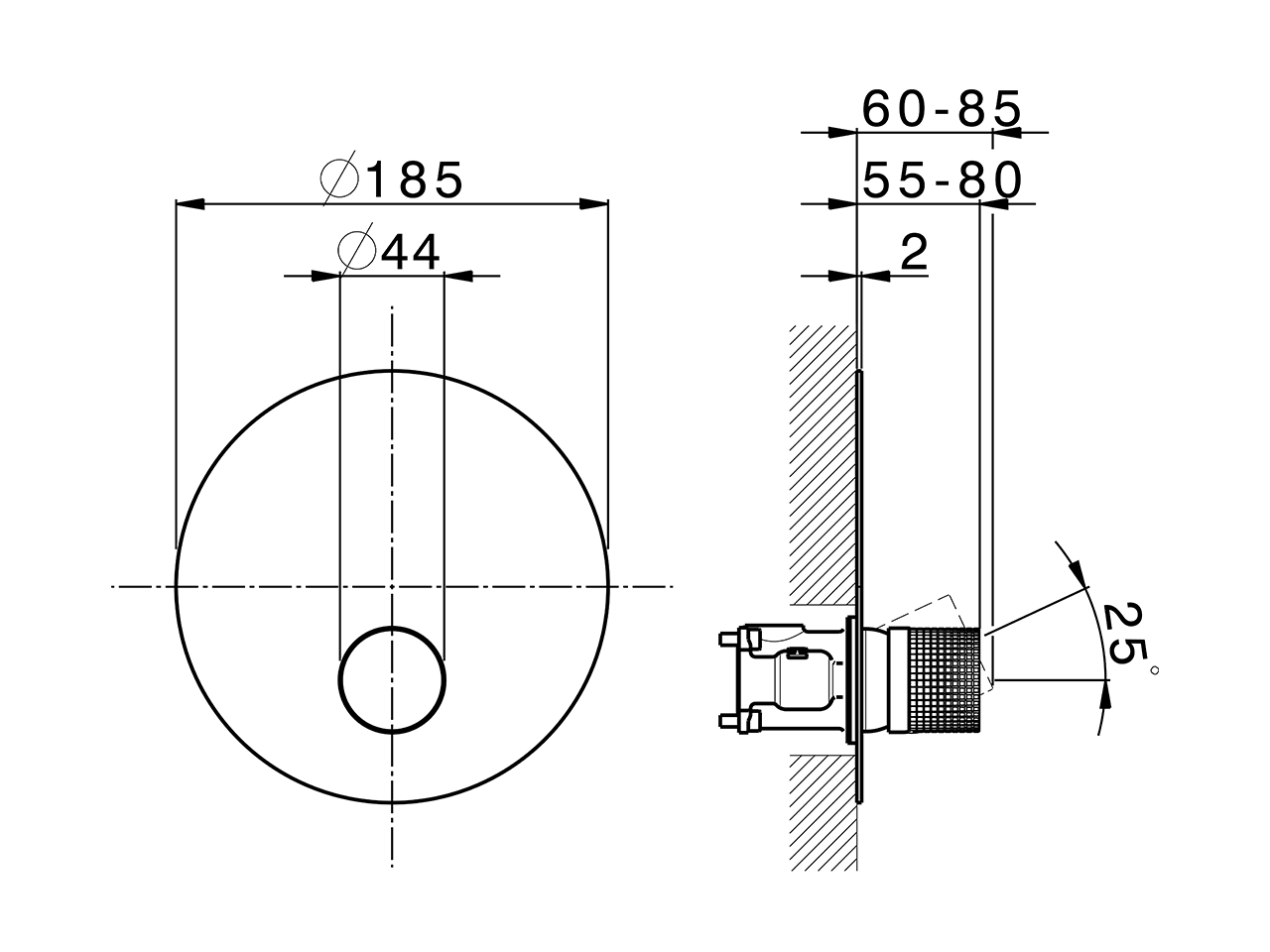

Files 2D
PDF PNG
Files 3D
STP
Spareparts
PDF
Instructions
PDF
Waterflow
X10BM010
Pressure Water Mix 1(l/min)
1 Bar 11.3
2 Bar 16
3 Bar 20.1
4 Bar 22.9
5 Bar 25.5
Concealed Parts
Cconcealed partsparts required for installation
CisalOne Box Universal Concealed Part ONE BOX_ZA00B031

One Box Universal Concealed Part ONE BOX_ZA00B031

One box ZA00B031

CisalOne Box Universal Concealed Part ONE BOX_ZA00B030

One Box Universal Concealed Part ONE BOX_ZA00B030

One box ZA00B030
