One box

Exposed part for Thermostatic One Box Valve ONE BOX_AC0BT030

Model

AC0BT030

Exposed part for Thermostatic One Box Valve,wth 1-2-3 outlet deviastop,Minimum depth of installation: 67 mm,without concealed part,for items ZA00B030-ZA00B031

Available Finishings
Finishing 21 Chrome
21
Chrome
Finishing 24 Gold
24
Gold
Finishing 26 Old Copper
26
Old Copper
Finishing 27 Old Bronze
27
Old Bronze
Finishing 2A Satin Brushed Nickel
2A
Satin Brushed Nickel
Finishing 74 Chrome/Gold
74
Chrome/Gold
Technical Sheet

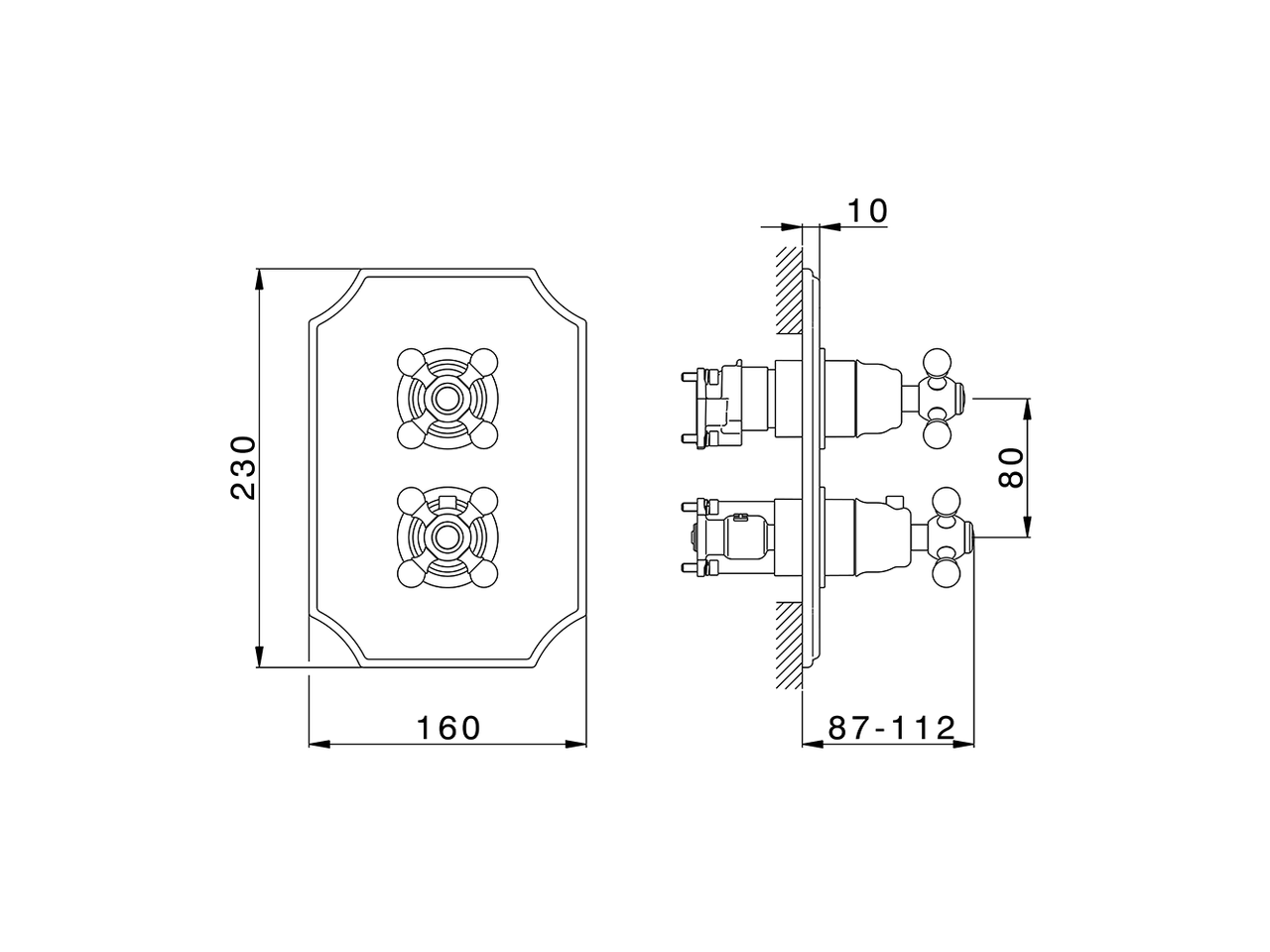

Exposed part for Thermostatic One Box Valve ONE BOX_AC0BT030 - v1
Technologies
Thermostatic

Thermostatic

The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.

Characteristics

Cartridge Spare Parts: 24.04A.PP

Cartridge Name: 8x20 Plus P Thermostatic Valve

Installation: Concealed

Technical Specifications
AC0BT030
Exposed part for Thermostatic One Box Valve ONE BOX_AC0BT030 - v1
Files 2D
PDF PNG
Spareparts
PDF
Instructions
PDF
Waterflow
AC0BT030
Pressure Water Mix 1(l/min) Water Mix 2(l/min) Water Mix 3(l/min)
1 Bar 7.5 6.5 6.5
2 Bar 11.7 10.7 10.7
3 Bar 15.9 14.9 14.9
4 Bar 23.2 22.2 22.2
5 Bar 30.1 29.1 29.1
Concealed Parts
Cconcealed partsparts required for installation
CisalOne Box Universal Concealed Part ONE BOX_ZA00B031

One Box Universal Concealed Part ONE BOX_ZA00B031

One box ZA00B031

CisalOne Box Universal Concealed Part ONE BOX_ZA00B030

One Box Universal Concealed Part ONE BOX_ZA00B030

One box ZA00B030
