Cubic

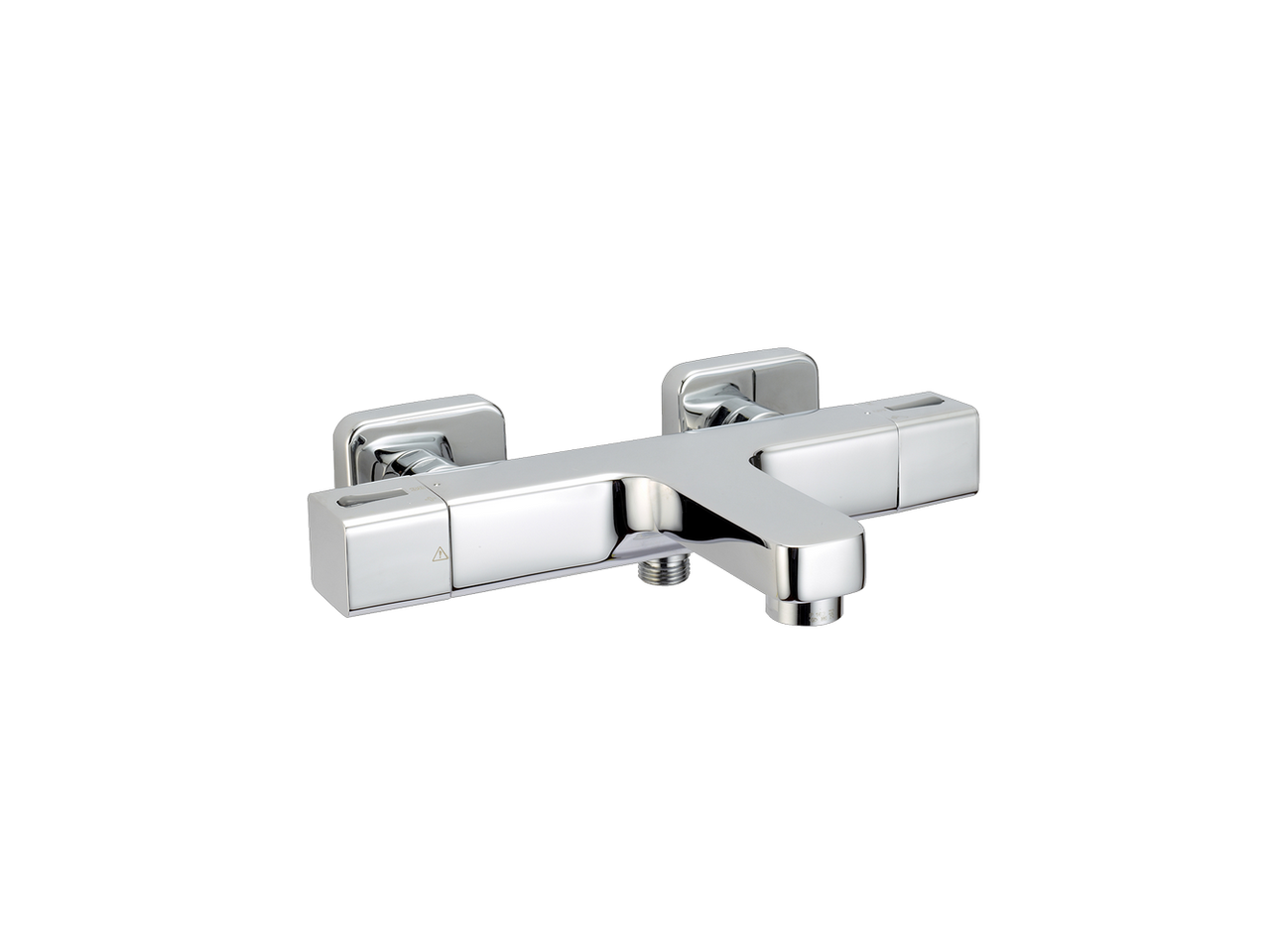

Thermostatic bath mixer CUBIC_CUT21020

Model

CUT21020

Thermostatic bath mixer,without shower set,1/2" M flexible connection

Available Finishings
Thermostatic bath mixer CUBIC_CUT21020 - v1
Technologies
DeviaStop

DeviaStop

The Cisal Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).

SafeTouch

SafeTouch

The Cisal SafeTouch system maintains the mixer body cool to the touch during operation.

Thermostatic

Thermostatic

The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.

Characteristics

Cartridge Spare Parts: 22.04A.AR - ZZ97279004

Cartridge Name: Argo 2 (long filter) Thermostatic Valve

Technical Specifications
CUT21020
Thermostatic bath mixer CUBIC_CUT21020 - v1

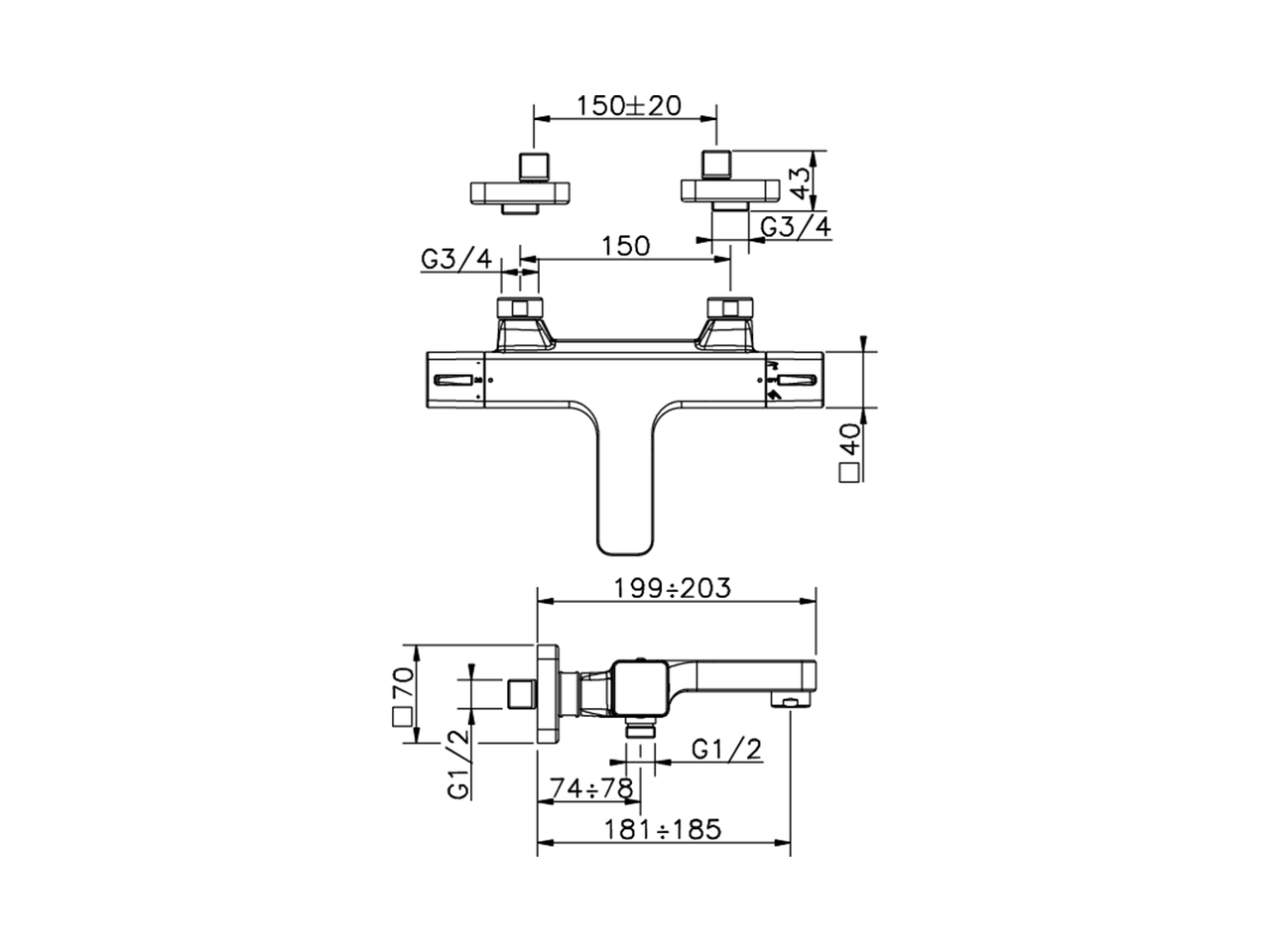

Files 2D
Spareparts
Instructions
Instructions
Waterflow
CUT21020
Pressure Shower(l/min) Bath(l/min)
1 Bar 6.7 11.4
2 Bar 10.5 18.1
3 Bar 11.7 20.5
4 Bar 13.9 24.4
5 Bar 15.7 27.6
