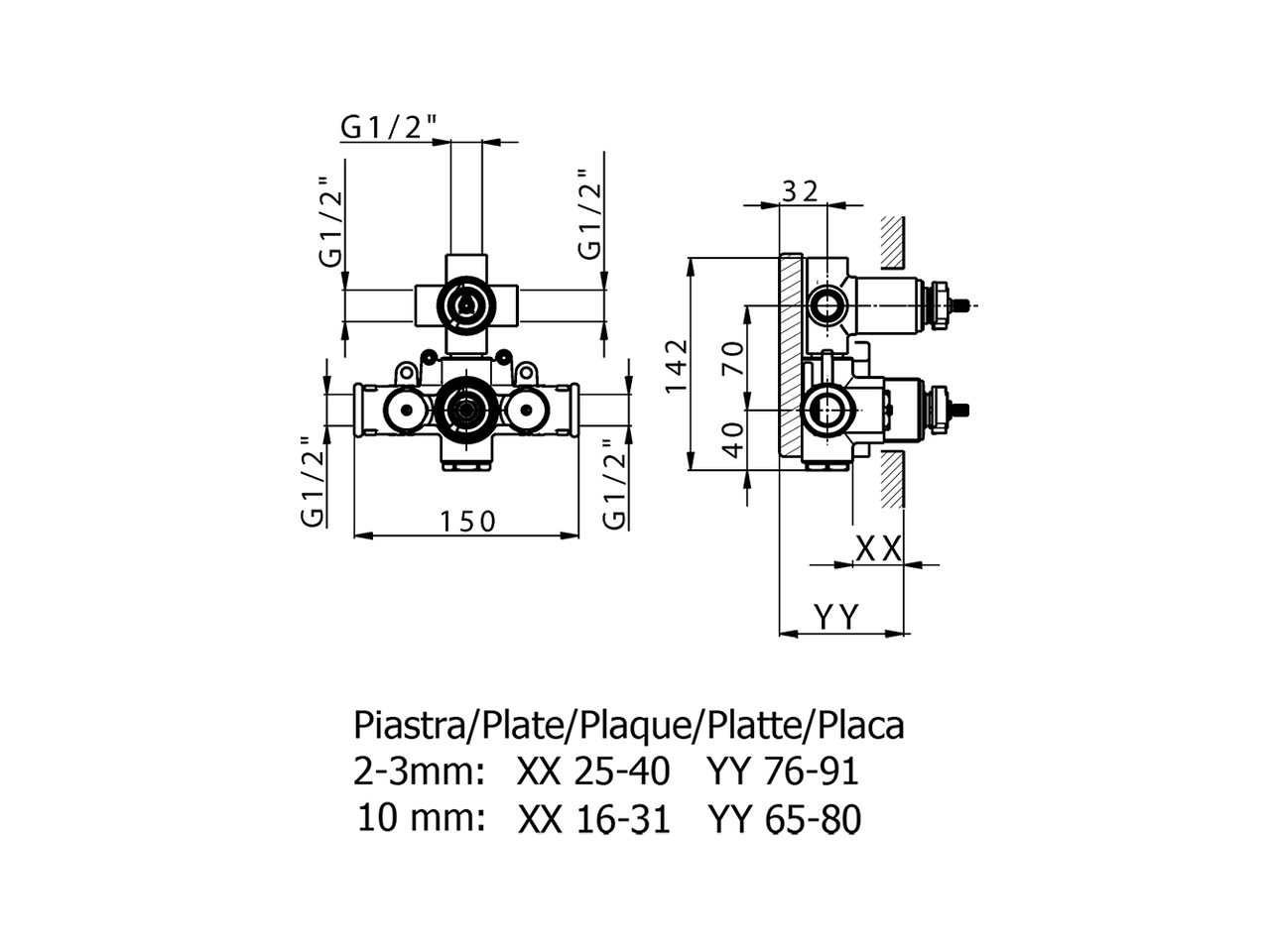

Concealed thermostatic shower valve, 3-outlets CONCEALED_ZA018201
Model
ZA018201
Concealed thermostatic shower valve, 3-outlets,with 1/2" 3 outlet deviastop cartridge,without trim kit
Available Finishings
Technologies
DeviaStop
The Cisal Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).
Thermostatic
The Cisal thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristics
Concealed: 1
Cartridge Spare Parts: 24.04A.PP
Cartridge Name: 8x20 Plus P Thermostatic Valve
Waterflow
ZA018201
| Pressure | Shower(l/min) | Bath(l/min) |
|---|---|---|
| 1 Bar | 13 | 14 |
| 2 Bar | 18 | 20 |
| 3 Bar | 22 | 24 |
| 4 Bar | 26 | 28 |
| 5 Bar | 28 | 31 |

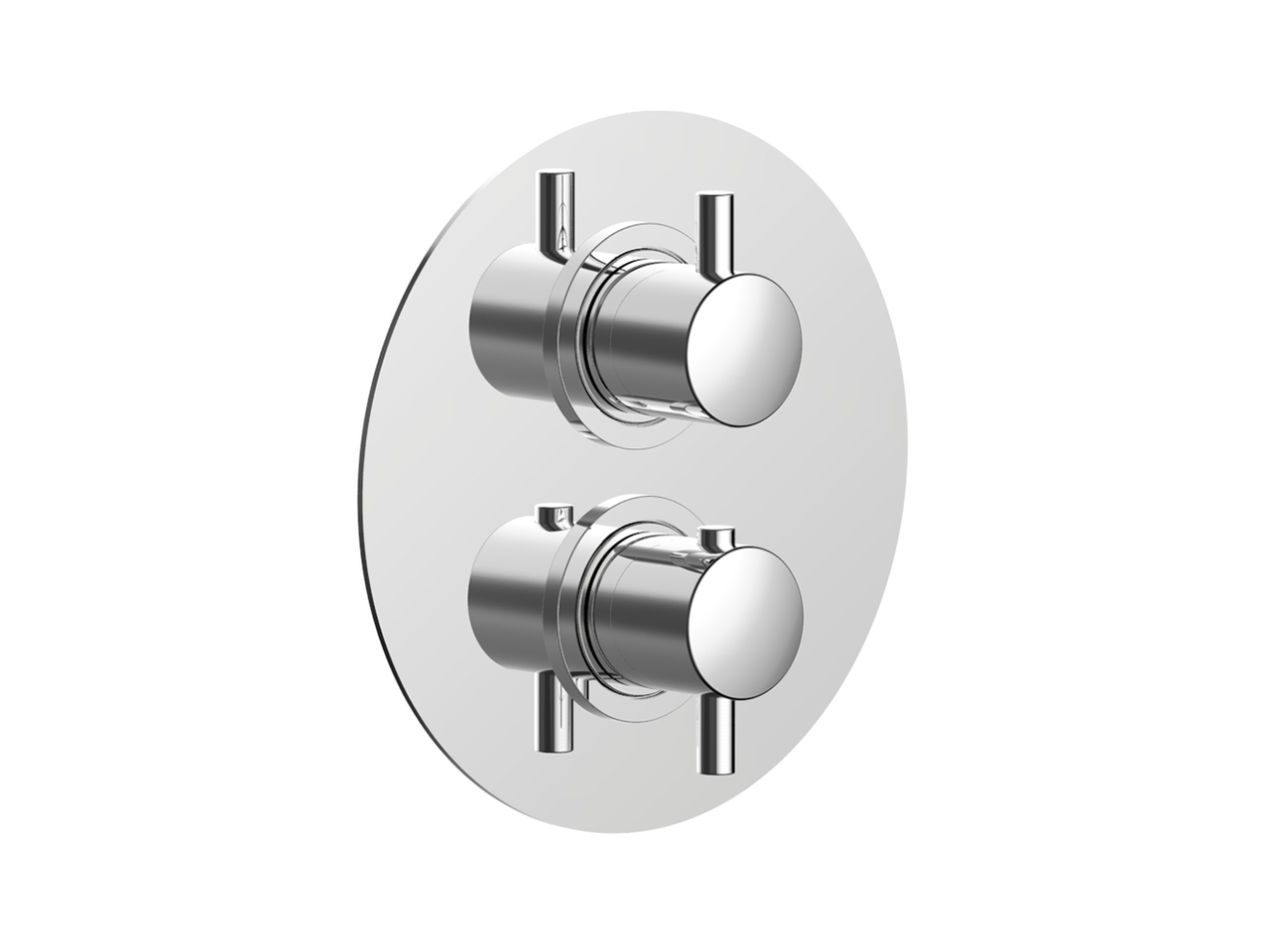

External Parts
External parts usable with current element
